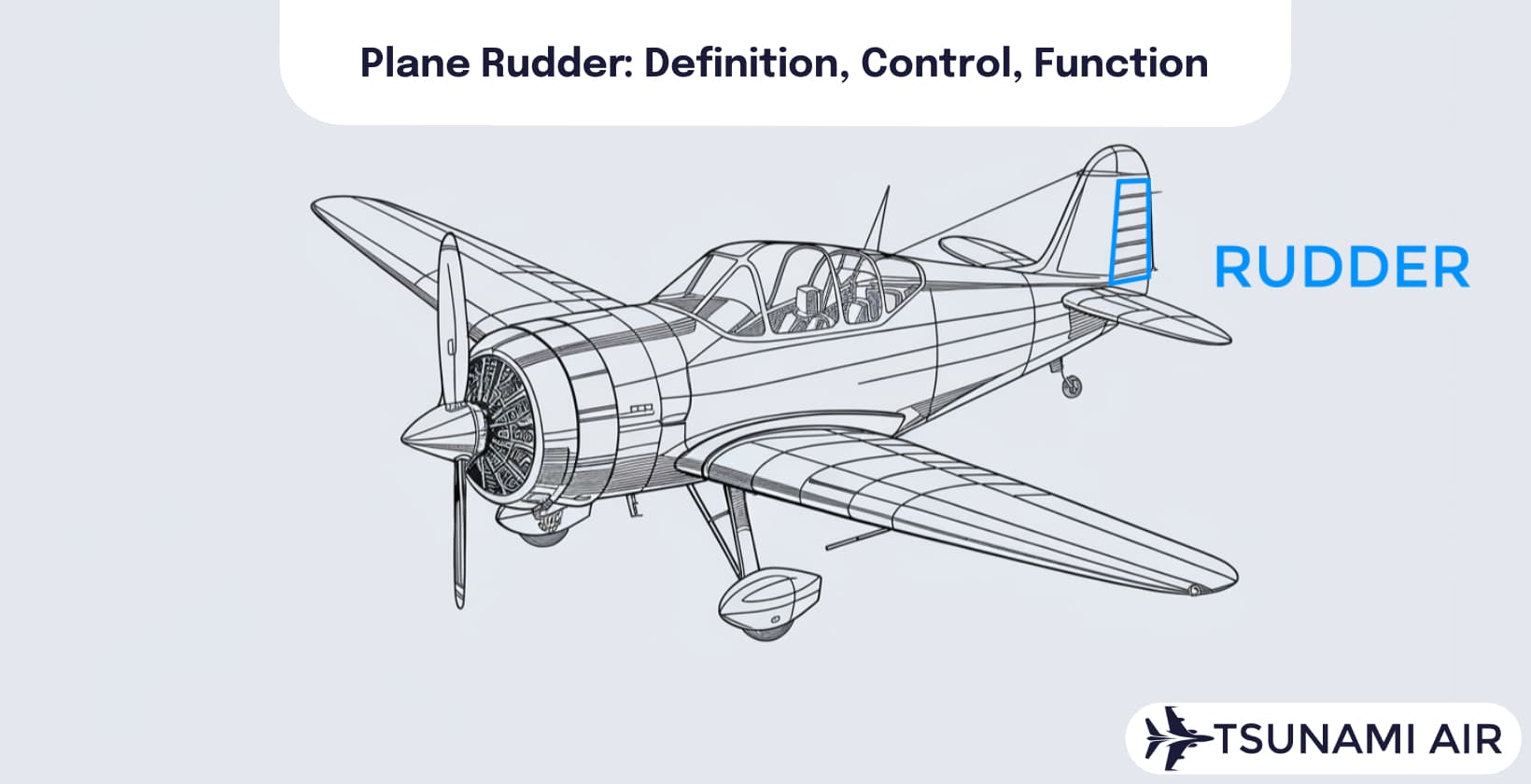

The rudder controls rotation about the vertical axis of an aircraft. It is a small, movable section hinged to the trailing edge of the vertical stabilizer, varying the force produced by the tail surface to command yawing motion.
Expert behind this article
Jim Goodrich
Jim Goodrich is a pilot, aviation expert and founder of Tsunami Air.
What is a rudder in an aircraft?
A rudder is a primary control surface used to steer a ship, boat, submarine, hovercraft, airship, or other vehicle that moves through a fluid medium. It is used to generate and control the yawing motion of the aircraft. The rudder is not the primary control used to turn the airplane, but it is used to control the position of the nose of the aircraft. A rudder is a movable section hinged to the rear of the vertical stabilizer. Rotation about the vertical axis is yaw, and the rudder generates sideward lift that yaws the nose of the airplane.
Where is the rudder located on an airplane?
Rudders are located on the far end of the airplane's tail. There, at the rear of the fuselage, a vertical stabilizer is fixed. The rudder is attached to this fixed fin and forms the movable aft part of the tail's vertical surface.
What does the rudder control on an aircraft?
The rudder's most important function is controlling the yaw of the aircraft. Yaw is rotation about the vertical axis, a motion that swings the nose left or right while the wings stay level. By altering the trailing-edge position of the vertical stabilizer, the pilot commands the surface to generate sideward lift on the tail. When the rudder is deflected to the right, the tail is pushed left and the nose yaws right whereas when it is deflected to the left, the tail moves right and the nose yaws left. This immediate, controlled yaw allows the pilot to steer the aircraft and to maintain directional stability, especially during take-off, landing, and asymmetric-power flight.
The yaw control provided by the rudder is vital for coordinated flight. Uncoordinated yaw increases parasite drag and leads to slip or skid conditions, so the rudder is used to keep the aircraft coordinated and to counter adverse yaw created by aileron deflection. Because the vertical stabilizer is mounted far aft on the empennage, the long moment arm from the center of gravity to the rudder creates a large torque about the y-axis, giving the pilot strong and precise authority over the aircraft's heading.
The rudder gives the pilot control to counterbalance yawing moments, keeping directional guidance during departure and touchdown in crosswinds. It handles the aircraft's turn while maintaining alignment with the relative airflow. During banked movement, it offsets harmful yaw and assures the nose points exactly where intended. Its importance is most evident when the aircraft is not fully stabilized, providing synchronization and steadiness. If one engine fails on a multi-engine aircraft, the rudder instantly counteracts the yawing moment, keeping flight steady. Although not the primary control for turning, it serves as a fine-tuning device vital for safety.
How do rudders work on a plane?
The rudder works by altering the effective shape of the airfoil of the vertical stabilizer. When the pilot presses a pedal, the rear of the rudder deflects to one side. This deflection redirects the fluid past the fuselage and changes the angle of attack on the stabilizer. The new angle creates lift on the rudder itself, generating a side force that rotates the aircraft about its center of gravity. Rotation about the vertical axis is called yaw, so the nose yaws toward the deflected surface: if the rear of the rudder moves left, the nose yaws left.
Direction is controlled by pedal movement. The pedals, one for each foot in the cockpit, are the flight control interface. Pressing the left pedal forward commands left yaw whereas pressing the right pedal commands right yaw. The vertical stabilizer, fixed part of the empennage, helps the plane remain directionally stable, while the rudder moves to vary the amount of force generated by the tail surface. Above manoeuvring speed, rudder travel is automatically limited to prevent excessive loads.
Rudder operation is pivotal during banking turns and when the aircraft must steer on the ground or in the air. A turn without a rudder results in adverse yaw, caused by extra drag from the ailerons on the outer wing. Coordinated use of rudder and ailerons keeps the nose aligned with the flight path. After the wings are brought level by opposing aileron motion, the side force is eliminated and the aircraft continues straight ahead along the new heading.
How to control the rudder of an airplane?
An airplane's rudder is controlled using the rudder pedals; pushing the left pedal to yaw the nose left and the right pedal to yaw it right, counteracting adverse yaw, and managing crosswinds during takeoff/landing. For coordinated turns with ailerons, pilots use smooth, coordinated pressure to keep the nose aligned with the desired path. Pilots use heel-toe movements to steer on the ground and feet for in-flight yaw control, often coordinating with the yoke for smooth turns.
When is the rudder used on a plane?
The pilot uses the rudder to align the aircraft with the runway during crosswind landing as any airplane at low speeds needs rudder to maintain direction. The rudder is used to counter left turning tendency during takeoff and climb, so the pilot applies right rudder as aircraft speed is low and power is high. At the same time, the pilot will use the rudder manually during hand flown portions like takeoff and landing to maintain a straight flight path. For landings, the rudder is also used to slip for crosswinds, letting the pilot keep the wings level while countering drift.
In multiengine aircraft, the rudder compensates for engine failure: the pilot uses rudder to overcome adverse yaw caused by the failed engine and to counter differential thrust from the remaining engine. Throughout, the rudder pedals cause rudder deflection in the same direction - pushing the left pedal gives left rudder.
What is the design of an aircraft rudder?
Rudder design starts with sizing. During the conceptual phase engineers record rudder area, chord, width, and maximum deflection. The area is expressed as a percentage of the vertical-stabiliser mean aerodynamic chord, and for general-aviation aircraft a figure of 35% is often judged ideal because it balances lateral-force production with Dutch-roll susceptibility.
The rudder itself is built as a single structural unit operated by one or more control systems, or it has a split design with upper and lower sections. The upper section is hinged so that its forward margin is pivotally mounted on the stabiliser-fin trailing edge. Independent of layout, the surface is an airfoil whose chord is measured at the base or root of the vertical fin. Increasing the ratio of rudder height to vertical-tail height, or increasing the total rudder area, directly enlarges the yawing moment produced for the same deflection and allows greater lateral-force generation, because the vertical fin and rudder together generate the side force that creates the required yawing moment.
To augment authority in cross-wind landings, a narrow chordwise plate called a fin spoiler is optionally added. This extendable plate, having a chordal length of only 2%-10% and a width less than 10% of the stabiliser chord, is pivotally mounted on each side of the vertical fin near the forward chordal location. When deployed manually or by a powered actuator, the fin spoiler improves sideslip capability, reduces negative pressure coefficients on the down-wind side, and thereby lessens the weather-cocking force that otherwise pushes the aircraft away from the runway.
What is the structure of an aircraft rudder?
The rudder structure consists of spars, ribs and skin. Ribs form the shape, skin closes it, and spars carry bending. Some rudders are single structural units whereas others with two segments consist of upper and lower units, and each segment consists of a forward and aft section.
Rudder sections include forward and aft sections. The aft section hinges to the forward section and the forward section hinges to the vertical stabilizer. The vertical stabilizer is mounted to the fuselage and is fixed relative to the fuselage.
Control motion is transmitted by push-pull rods, bellcranks, and cable assemblies. The push-pull rods move bellcranks, bellcranks pull cables, and cables deflect the surface. The rudder system includes a power cylinder and routes hydraulic fluid to the power cylinder. The rudder system includes cable assemblies and a rudder damper.
What types of rudders are used in aviation?
The types of rudders used in aviation are outlined below.
- Balanced Rudders
- Semi-balanced rudders
- Unbalanced rudders
Balanced rudders, semi-balanced rudders and unbalanced rudders are the three basic aerodynamic families employed on aircraft today, yet only the first two remain common. Balanced rudders used by aircraft position a part of the surface ahead of the hinge line so that the slip-stream striking that forward area partly offsets the hinge moment, cutting pilot pedal force. Two slanted tail surfaces perform the same functions as an elevator and rudder in V-tail Bonanzas. Some fighter planes have two vertical stabilizers doubling the yaw control area, and a ground adjustable tab used on rudder allows mechanics to fine-tune cruise.
What are the rudder requirements in aviation?Rudder requirements are clearly stated in the certification rules. FAR 23.143 caps the short-term maximum rudder pedal force at 150 lbs f (670 N) and the long-term load at 20 lbs f (90 N). MIL F 8785 B allows only 50 lbs f (220 N) to keep the aircraft in coordinated flight.
The pilot's workload varies with the flight situation. Larger deflection at low speeds and small deflection at high speeds may be required. The amount of rudder control required is greatest at low airspeeds, high angles of attack, and with large aileron deflections, because the ailerons create adverse yaw that the rudder must cancel to secure safe control of yaw.
