Form drag is a type of aerodynamic resistance experienced by aircraft in flight. Form drag results from the pressure differences created as an object moves through the air. The magnitude of form drag depends on factors including the aircraft's shape, surface area, and speed. Form drag impacts an aircraft's overall drag profile and fuel efficiency. Understand how form drag relates to other aerodynamic forces like friction drag and induced drag.
Aircraft geometry, body shape, wing outline, fuselage design, and edge shape impact form drag. Pressure distribution, differentials, stagnation pressure, pressure gradient, and aerodynamic load contribute to form drag. Vortices and turbulence increase drag. Profile drag encompasses skin friction and boundary layer effects on the aircraft surface.
Form drag is quantified using the drag coefficient. Drag coefficient is related to the form drag force experienced by the aircraft. Airflow patterns and resistance factors determine the overall aerodynamic performance. Streamlined shapes and smooth surfaces minimize form drag by reducing flow separation and pressure differentials. Sharp edges and abrupt shape changes increase drag. Rounded edges and transitions help maintain attached flow.

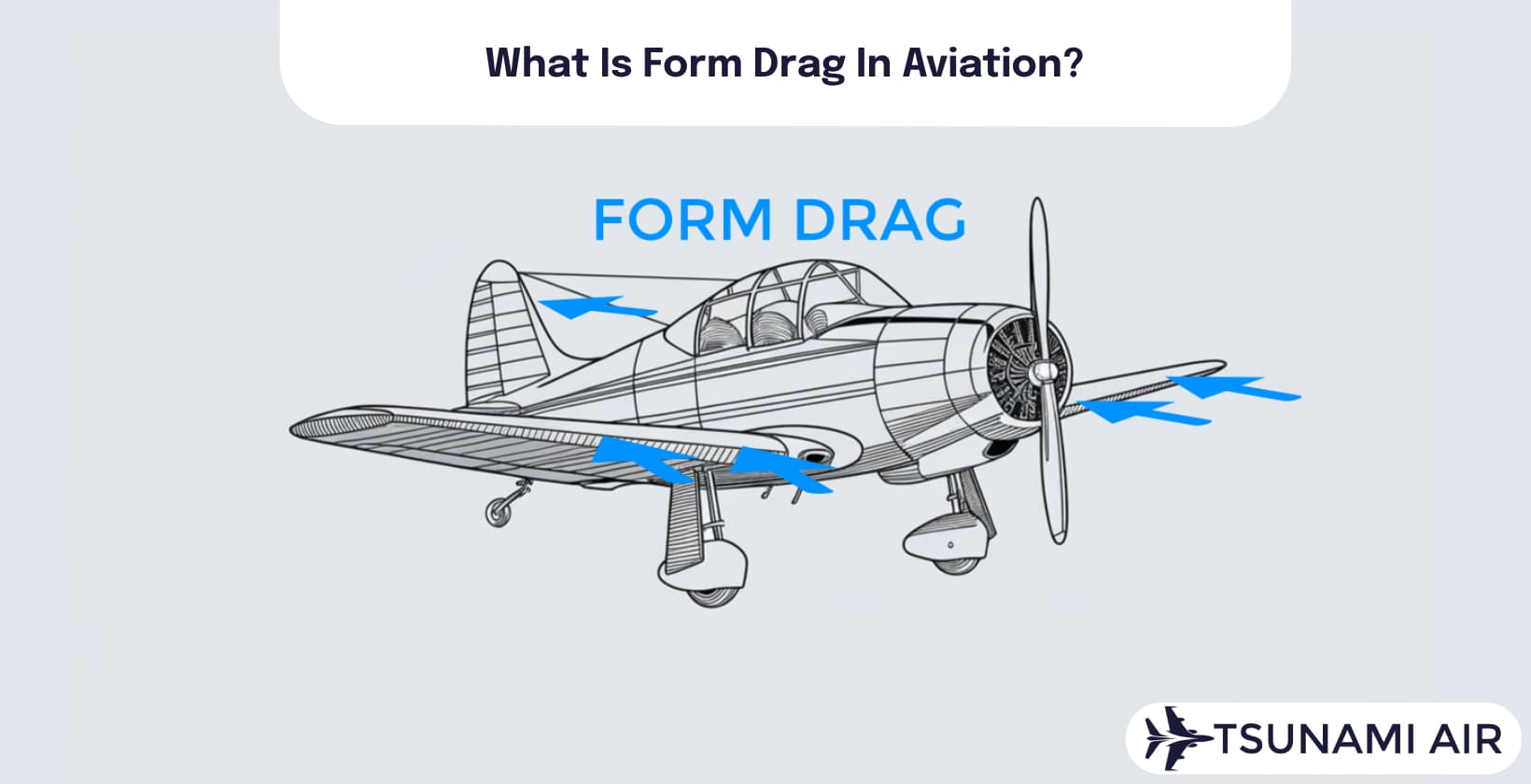

What is form drag in aviation?
Form drag in aviation is resistance caused by aircraft shape. Pressure differences create this drag as air flows around the aircraft. Streamlined surfaces reduce form drag by minimizing airflow separation. Aircraft designers optimize shapes to decrease drag while maintaining lift and thrust.
Aircraft geometry plays a part, with body shape, wing outline, fuselage design, and edge shape all impacting drag. Surface configuration affects airflow patterns and resistance.
Flow separation is a primary mechanism of form drag. Separation points occur where airflow detaches from the aircraft surface. Boundary layer effects lead to wake formation behind the aircraft. Vortices and turbulence in the wake increase drag. Pressure drag results from the difference in pressure between the front and rear of the aircraft.
Lower coefficient values indicate better aerodynamic efficiency. Airflow patterns around the aircraft and resistance factors determine the overall aerodynamic performance. Sharp edges and abrupt shape changes increase drag, while rounded edges and smooth transitions help maintain attached flow.
What is the pressure drag equation?
The pressure drag equation is drag force equals one-half times fluid density times velocity squared times area times drag coefficient. Pressure drag depends on object shape and flow separation. Drag coefficient encapsulates both friction and pressure drag components.
The Pressure Drag Equation formula is Drag force = 0.5 * Density * Velocity^2 * Reference Area * Drag Coefficient. Density represents air density or mass per volume of fluid. Velocity measures the speed and flow direction of the object relative to the fluid. Reference Area refers to the projected area or surface perpendicular to the flow. Drag Coefficient is a dimensionless shape factor calibrated for objects and flow conditions.
Pressure Difference, or pressure gradient, measures the force per unit area acting on the object. Pressure equals 0.5 * density * velocity^2 and represents the fluid's kinetic energy density. Pressure Coefficient normalizes pressure differences and is expressed as a value.
Drag Force acts as a force and aerodynamic resistance opposing object motion through fluid. Pressure drag contributes to drag, for bluff bodies or objects with intricate shapes. The relationship between pressure drag and drag is encapsulated in the drag coefficient, which combines both friction and pressure drag effects.
What is the difference between pressure drag and friction drag?
The difference between pressure drag and friction drag is the forces acting on an object in fluid flow. Pressure drag results from pressure differences between the object's front and back. Friction drag arises from fluid-surface interactions. Pressure drag dominates for bluff bodies, while friction drag is important for streamlined shapes.
The difference between pressure drag and friction drag is explained in the table below.
Aspect | Pressure Drag | Friction Drag |
Cause | Results from pressure differences between the object's front and back, typically up to 1000 Pa | Arises from fluid-surface interactions due to shear stress, around 10 Pa for air at 50 m/s |
Importance | Dominates for bluff bodies, contributing up to 90% of total drag | Important for streamlined shapes, contributing up to 50% of total drag |
Flow Characteristics | Uneven pressure distribution around the object, with stagnation points at the front | Shear stress and viscous forces on the surface, with a boundary layer thickness of about 1 mm for air at 50 m/s |
Flow Separation | Flow separation occurs, leading to vortex formation behind the object | Influenced by boundary layer characteristics, such as laminar or turbulent flow |
Role of Viscosity | Viscosity contributes through molecular friction, affecting flow separation | Viscosity influences boundary layer thickness and velocity gradient, typically 1.5 × 10^-5 Pa·s for air |
Reynolds Number | At higher Reynolds Numbers (e.g., Re > 10^5), flow is more turbulent, increasing pressure drag | Higher Reynolds Numbers increase eddy intensity, affecting friction drag |
Combined Drag | Contributes to overall drag force along with friction drag, typically 50-90% of total drag | Combines with pressure drag to form total drag, typically 10-50% of total drag |
Pressure drag results from uneven pressure distribution around an object. Flow separation occurs when fluid detaches from the object's surface at the separation point. Vortices form behind the object due to flow separation, increasing pressure drag. Friction drag arises from shear stress and viscous forces acting on the object's surface. The boundary layer surrounding the object influences friction drag through its thickness and velocity gradient.
Fluid resistance and molecular friction contribute to drag forces. Reynolds Number, a ratio, determines the balance between inertial and viscous forces. Higher Reynolds Numbers indicate more turbulent flows. Turbulence introduces flow irregularities and increases eddy intensity, affecting both pressure and friction drag.
Drag combines pressure and friction drag components into a drag force. The relative contribution of each element depends on object shape and flow conditions. Streamlined bodies experience friction drag, while blunt bodies encounter pressure drag. Understanding these drag mechanisms is vital for optimizing aerodynamic performance in applications.
