Angle of Attack: Definition, Difference, Function

Angle of attack is an aerodynamic concept in aviation and fluid dynamics. Angle of attack refers to the angle between an aircraft's wing chord line and the oncoming air flow. Angle of attack has a definition and difference as aspects. Angle of attack affects an aircraft's lift, drag, and performance. Understand angle of attack to grasp principles of flight and aircraft design.

Angle of attack and angle of incidence are different concepts in aerodynamics. Angle of attack changes with aircraft attitude and airflow. Angle of incidence is fixed, set by design during manufacturing. Angle of attack is measured between the chord line of an airfoil and the relative wind direction. Angle of attack affects lift generation and stall risk. Angle of incidence optimizes cruise conditions and reduces drag.

Increasing angle of attack increases lift up to a critical point of 15° to 18° for airfoils. Exceeding the critical point causes airflow separation, resulting in a stall. Lift coefficient value rises with increasing angle of attack until reaching the stall point. Drag magnitude increases with angles of attack due to greater induced drag. Higher angles create a pronounced pressure gradient, leading to increased lift until stall occurs.

What is angle of attack in aviation?

The angle of attack in aviation is the angle between the wing's chord line and the relative wind. Angle of attack determines lift and control of an aircraft. Management of angle of attack is essential for maintaining lift and guaranteeing safe flight operations.

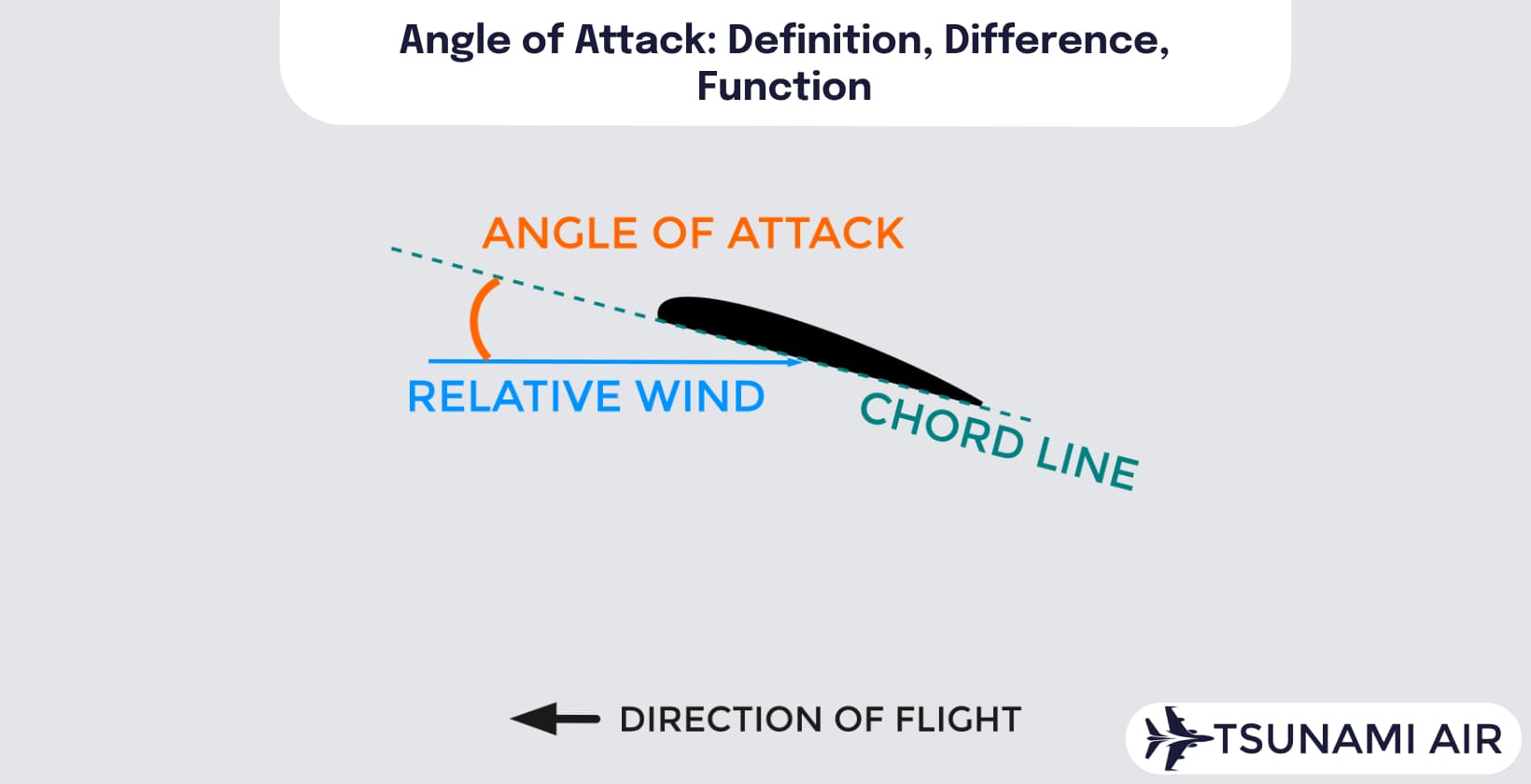

The angle of attack (AOA) forms between the chord line of the wing and the relative wind vector. The chord line runs from the leading edge to the trailing edge of the wing. The relative wind moves opposite to the flight direction. AOA determines lift and drag forces on the wing. Lift force increases with AOA up to a point. Drag force increases as AOA increases. The angle of attack ranges from 15 to 20 degrees for most airfoils. The wing experiences a stall condition beyond the critical angle. Lift decreases in a stall due to airflow separation.

The aerofoil shape influences lift production at positive angles of attack. The aerofoil profile affects the lift curve and stall characteristics. Angle of attack incidence refers to the angle between the wing chord and aircraft datum. Stall conditions occur at any airspeed, altitude, or power setting. Steep turns increase stall risk due to higher wing loading. Pilots must monitor AOA to maximize performance and safety. Increasing AOA increases lift until reaching a critical point. Airflow separation causes lift to decrease beyond the critical AOA. A stall occurs when AOA exceeds the critical threshold.

Leading-edge slats increase the critical angle of attack. Trailing-edge flaps allow safer flight at slower speeds. AOA affects aircraft lift and drag characteristics. Pilots adjust AOA to control lift during flight. Flight path angle affects AOA by altering relative wind direction. The critical angle of attack represents the maximum angle before stalling. AOA management prevents stalls during low-speed operations.

What is an angle of attack sensor?

An angle of attack sensor is a device that measures the angle between an aircraft's wing and the airflow. Angle of attack sensors provide data to prevent stalls and guarantee stable flight. These sensors use vanes or probes to measure airflow direction relative to the wing.

Angle of attack sensors come in types, including alpha vanes, AoA probes, and pitot tubes. Alpha vanes sense airflow direction by aligning with the relative wind. AoA probes use pressure differentials to measure angle of attack. Pitot tubes measure both static and dynamic air pressure for airspeed calculations.

Angle of attack sensors detect wind direction in relation to the wing chord reference. Wing chord geometry is pivotal for accurate angle measurements. Angle of attack sensors output signals proportional to the angle.

Sensor calibration processes involve correlating outputs with known angle of attack conditions. Factors affecting accuracy include icing, damage, and misalignment. Precision in measurements is vital for flight safety and performance optimization.

Flight control systems integrate angle of attack data for stability. Angle of attack indicator displays provide visual feedback to pilots. AoA information impacts aircraft performance by optimizing lift and preventing stalls.

Angle of attack aerodynamics relate to lift generation and stall prevention. AoA measurements complement airspeed and pressure data for flight information. Maintaining angle of attack is fundamental for flight stability across conditions.

How to calculate angle of attack?

To calculate the angle of attack, follow the steps outlined below.

• Define the chord line from the leading edge to the trailing edge of the wing.
• Identify the relative wind flow direction opposite to the aircraft's motion.
• Measure pitch angle for nose orientation related to the horizon.
• Establish the angle of incidence between the wing and the aircraft body.
• Use the formula \( \text{AoA} = \tan^{-1}(V_z/V_x) \) with vertical and horizontal airspeed components.
• Calculate the angle of attack as the difference between relative wind direction and chord line orientation.
• Separate static factors like wing incidence from dynamic factors like pitch rate during calculation.
• Employ onboard instruments to measure pitch, flight path, and incidence angles.
• Visualize relationships via reference axes and vectors.
• Transform coordinates between body and wind axes as required.

Calculate the angle of attack by determining the angle between the chord line of an airfoil and the relative wind direction, or use the formula AoA = atan(Vz/Vx) where Vz and Vx are vertical and horizontal airspeed components. Angle of attack measurement requires understanding wing geometry, relative wind, pitch angles, and flight paths. Aircraft systems infer angle of attack from accelerations and pressure sensors. Pilots measure pitch angle as the orientation of the aircraft's nose relative to the horizon. Level flight causes the angle of attack to equal the pitch angle plus or minus the angle of incidence. Engineers define the chord line as a straight line running from the leading edge to the trailing edge of the wing.

The Aircraft Body Axis coordinate system aligns with the aircraft's longitudinal axis and serves as a reference frame. The chord line runs from the leading edge to the trailing edge of the wing, providing a reference geometry for angle measurements. Relative wind flows opposite to the aircraft's motion and determines the angle of attack. The flight path vector represents the aircraft's trajectory and velocity through the air.

Angle of incidence is the fixed angle between the wing and aircraft body, 2-4 degrees. Pitch angle measures the aircraft's nose orientation relative to the horizon, 5-10 degrees in cruise flight. Flight path angle indicates the trajectory relative to the horizon, within +/- 5 degrees of level. Pitch rate describes the velocity of pitch changes, reaching up to 30 degrees per second during maneuvers.

Angles like pitch, flight path, and incidence are measured using onboard instruments. Reference axes and vectors are drawn to visualize the geometric relationships. The angle of attack equals the difference between relative wind direction and chord line orientation. Coordinate transformations convert between body and wind axes as needed. Mathematical relationships are defined between components like pitch angle, flight path angle, and angle of attack. Static factors like wing incidence are separated from dynamic factors like pitch rate when calculating the angle of attack.

What is the difference between angle of attack and angle of incidence?

The difference between angle of attack and angle of incidence is that angle of attack is variable, altering with aircraft attitude and airflow, while angle of incidence is fixed, set by design. Angle of attack affects lift generation and stall risk, whereas angle of incidence optimizes cruise conditions and reduces drag. Angle of incidence is set during aircraft design and manufacturing, remaining constant throughout flight except in cases like the Vought F-8 Crusader.

The difference between angle of attack and angle of incidence is explained in the table below.

The chord line is a line running from the leading edge to the trailing edge of an airfoil. The chord line's orientation relative to the aircraft's longitudinal axis defines the angle of incidence, while its orientation relative to the relative wind defines the angle of attack. Relative wind is the direction and speed of airflow encountering the aircraft, influenced by the aircraft's velocity and direction. The relative wind direction is important for determining the angle of attack and affects how air flows over the wing to generate lift.

The aircraft reference line serves as a basis for measuring angles like the angle of incidence. The aircraft reference line aligns with the direction of minimum drag or the aircraft's centerline. The alignment of the aircraft reference line with the wing's chord line determines the angle of incidence.

What is the critical angle of attack?

The critical angle of attack is the point where airflow separates from a wing, occurring between 15 and 20 degrees for many aircraft. Exceeding this angle results in stalling, regardless of airspeed. Angle of attack knowledge is fundamental for flight operations.

The critical angle of attack ranges from 15 to 18 degrees for airfoil designs. Angle of attack measures the angle between the wing's chord line and airflow in degrees. The lift coefficient serves as a performance indicator for airfoil efficiency, increasing with angle of attack up to the critical angle. Flow separation occurs when the angle of attack exceeds the critical angle, causing airflow detachment from the wing's upper surface. Wing geometry influences lift performance and stall behavior, while airfoil shape determines lift characteristics and critical angle of attack.

Aircraft operate below the critical angle of attack to avoid stall conditions. Aircraft use angle of attack limiters to prevent exceeding critical limits. Stall onset occurs when wings exceed their critical angle of attack, resulting in lift loss due to flow separation. Cessna aircraft and other general aviation planes stall at 15-20 degree angles of attack. Fighter jets can operate up to 40 degree angles of attack before stalling due to airfoil designs. Pilots must understand critical angles of attack for operations, as exceeding angle of attack limits results in aerodynamic instability. Stall recovery involves reducing angle of attack to reattach airflow and restore lift generation ability.

What does the angle of attack of a wing control?

The angle of attack of a wing controls the amount of lift generated. Increasing the angle of attack increases lift up to a critical point. Exceeding this point causes airflow separation, resulting in a stall. Management of angle of attack is fundamental for stable flight and preventing lift loss.

The angle of attack influences lift and drag forces on a wing. Increasing the angle of attack increases lift magnitude up to the critical angle, 15° to 18° for airfoils. Drag magnitude increases with angles of attack due to greater induced drag from increased lift and wingtip vortices formation. The lift coefficient value rises with increasing angle of attack until reaching the stall point, where efficiency decreases.

Pressure distribution over the wing is affected by the angle of attack. The center of pressure location moves forward as the angle of attack increases, impacting the aircraft's pitching moment and stability. Increasing angle of attack results in a nose-up pitching moment, influencing aircraft stability and control.

The stall threshold of a wing is determined by its angle of attack. A wing enters a stall when the angle exceeds the critical value, characterized by lift loss due to airflow separation over the wing's upper surface. The relative wind direction and velocity play roles in determining the angle of attack. Changes in these factors alter the angle, impacting lift and drag forces on the wing.
