Bernoulli's Principle: Definition, Application, Example

Bernoulli's Principle is a concept in fluid dynamics that describes the relationship between fluid pressure and velocity. Bernoulli's Principle has applications in various fields, including aviation, engineering, and meteorology. The principle involves elements including pressure differences, fluid velocity, and energy conservation. Bernoulli's Principle explains numerous real-world phenomena and provides examples of its effects. Learn about Bernoulli's Principle's definition, applications, examples, and pressure relationships to understand its importance in fluid mechanics and real-life phenomena.

Bernoulli's principle explains lift generation in flight. Increased fluid speed results in decreased pressure. Air moves faster over a wing's curved upper surface than below. Pressure difference creates an upward force called lift. Lift keeps the airplane airborne. Airplanes experience air speeds of 100-500 meters/second (328-1640 feet/second) over their wing tops. Wing shape influences the magnitude of this pressure differential. Angle of attack influences the magnitude of this pressure differential.

Airfoils generate lift by creating pressure differences. Pitot tubes measure fluid velocity by comparing static and dynamic pressures. Bernoulli's principle demonstrates energy conservation in fluid flow systems. Fluid velocity increases correspond to pressure decreases. Total energy remains constant in fluid flow systems. The Venturi effect illustrates this principle in flow constrictions. Fluid acceleration through narrowed sections causes pressure drops. Pressure drops enable flow rate measurements.

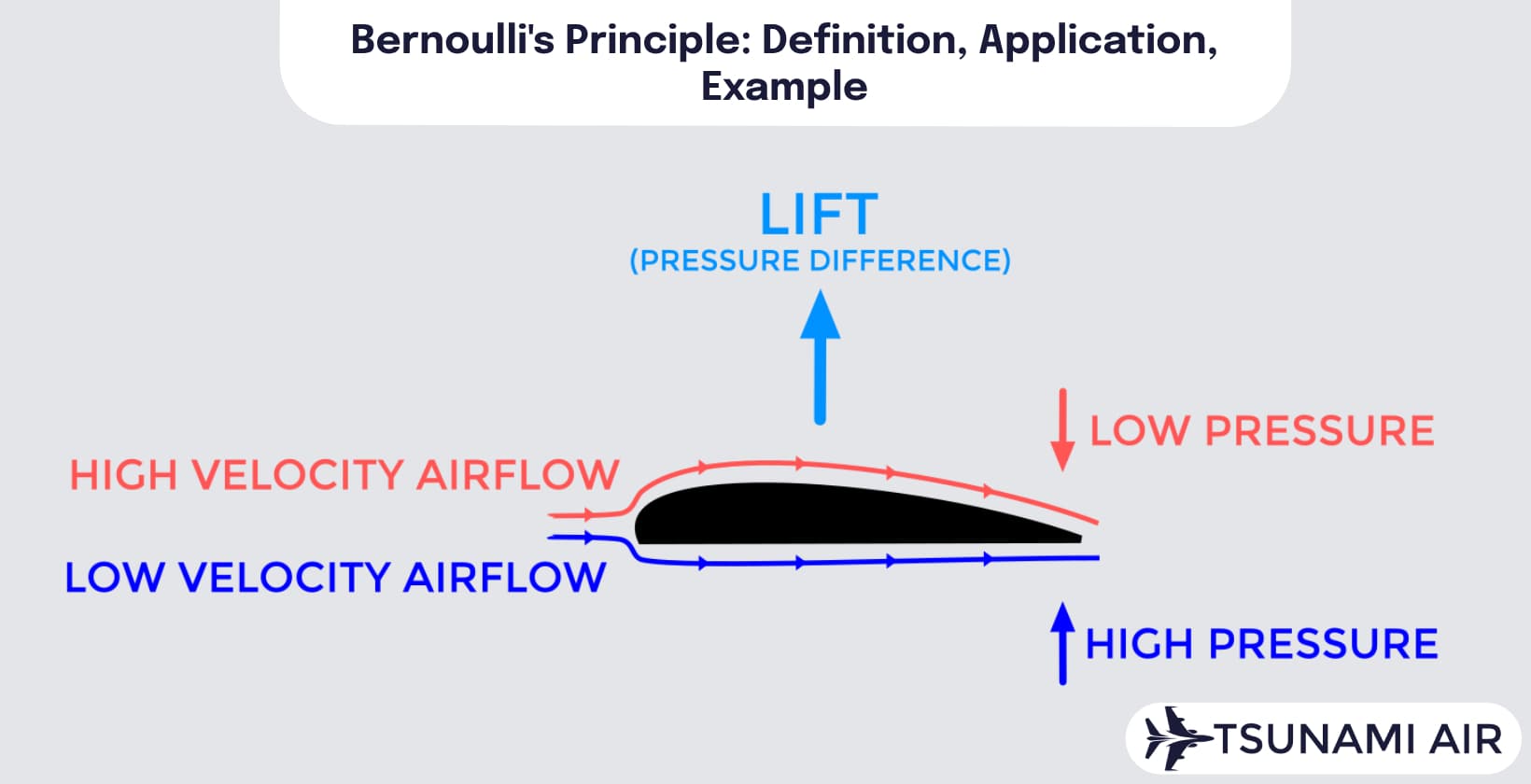

Airplane wings demonstrate Bernoulli's principle through pressure distribution across their surfaces. The wing's curved upper surface creates faster airflow. Faster airflow results in lower pressure above the wing. Pressure difference between the upper and lower surfaces generates lift. Lift counteracts the aircraft's weight. Air speed over the surface reaches 50 m/s (approximately 164.04 ft/s). Air speed underneath the wing measures 30 m/s (approximately 98.4 ft/s). Bernoulli's equation calculates pressure distribution around airplane wings. Bernoulli's equation considers air density of 1.2 kg/m³ (0.075 lb/ft³). Bernoulli's equation considers velocity over the surface of 50 m/s (approximately 164.04 ft/s). Venturimeters measure fluid flow rates using Bernoulli's principle. The device contains a constricted section called the throat. Fluid velocity increases in the throat. Pressure decreases in the throat. Throat diameter measures half of the pipe's diameter. Fluid velocity increases by a factor of four in the throat.

What is Bernoulli's principle in flight?

Bernoulli's principle in flight explains lift generation. Air moving over a wing's curved upper surface travels faster than air below, creating a pressure difference. This pressure imbalance generates an upward force called lift, keeping the airplane airborne.

Bernoulli's Principle relates fluid velocity and pressure. The equation states that as fluid velocity increases, static pressure decreases, conserving energy along streamlines. Airplane wings exploit this principle through their cambered airfoil design. The curved upper surface forces air to travel a longer distance, increasing its velocity compared to the flatter bottom surface.

Airflow streamlines over an airplane wing demonstrate the Venturi effect. Air moves over the wing's top, creating a region of lower pressure. The pressure differential between the upper and lower surfaces generates an upward force. This aerodynamic lift counteracts the aircraft's weight, enabling flight. Typical commercial airplanes experience air speeds of 100-500 meters/second (328-1640 feet/second) over their wing tops.

Static pressure decreases as airspeed increases, following Bernoulli's Principle. The pressure variation around the wing results in a pressure gradient. Lower pressure above the wing and higher pressure below create the lift force. Wing shape and angle of attack influence the magnitude of this pressure differential.

Lift generation results from the pressure imbalance caused by differential air velocities. The upward force acts perpendicular to the airflow direction. Engineers apply Bernoulli's Principle to optimize wing design, maximizing lift while minimizing drag. The airfoil's cambered shape enhances lift by increasing air velocity over the top surface. Bernoulli's Principle, combined with factors like angle of attack, explains how heavier-than-air machines achieve flight.

What is the derivation of Bernoulli's theorem?

The derivation of Bernoulli's theorem stems from the conservation of energy principle. It assumes fluid flow. The equation relates pressure and velocity changes along a streamline, incorporating Newton's Second Law of Motion and energy conservation concepts.

Bernoulli's equation expresses the conservation of energy principle for fluid flow. The equation relates pressure, velocity, and elevation along a streamline: P + 1/2ρv^2 + ρgh = constant. P represents pressure, ρ is density, v is velocity, g is acceleration, and h is elevation. Kinetic energy (1/2ρv^2) contributes to dynamic pressure, while potential energy (ρgh) accounts for gravitational effects. Pressure energy (P) relates to static pressure in the fluid.

The derivation assumes steady, inviscid, and incompressible flow along a streamline. Steady flow ensures constant flow variables over time, simplifying the analysis. Inviscid flow neglects viscous forces, allowing the application of Euler's equations for ideal fluid dynamics. Incompressible flow assumption eliminates energy changes due to compressibility or thermal effects.

Two approaches derive Bernoulli's equation: incorporating Newton's second law of motion and applying the conservation of energy principle. The conservation of energy approach considers fluid flowing through a pipe with varying cross-sectional areas and heights. Total mechanical energy remains constant along the streamline without external work or viscous forces. Newton's second law approach applies the force equation to a fluid parcel moving through the pipe, equating pressure differences and gravity to mass times acceleration.

Bernoulli's principle simplifies the equation for constant fluid height (h1 = h2), highlighting the inverse relationship between pressure and velocity. Velocity increases as pressure decreases, maintaining energy balance. The pressure gradient drives fluid flow, influencing velocity and pressure changes along streamlines. Euler's equations provide a framework for analyzing inviscid fluid motion, from which Bernoulli's equation is derived under specific conditions.

Aerodynamics use Bernoulli’s principle to explain lift on airfoils and aircraft wings. Hydroelectric power plants apply it to design turbines and understand water flow. Pitot tubes measure airspeed by comparing static and total pressures. Venturi meters determine fluid flow rates based on pressure differences. The equation explains phenomena like ocean surface waves and the Venturi effect in carburetors and atomizers.

What is Bernoulli's principle formula?

Bernoulli's principle formula is p1 + 1/2 ρv1^2 + ρgh1 = p2 + 1/2 ρv2^2 + ρgh2. Formula combines static pressure (p), dynamic pressure (1/2 ρv^2), and potential energy (ρgh) to describe total fluid energy at any point.

Bernoulli's principle formula has variations depending on the fluid conditions. For steady, incompressible flow, the general form is p + 1/2ρv^2 + ρgh = constant. This equation represents the conservation of energy in fluid flow, combining pressure, kinetic, and potential energy terms. When comparing two points in a fluid flow, the equation becomes p1 + 1/2ρv1^2 + ρgh1 = p2 + 1/2ρv2^2 + ρgh2. Engineers use this form to analyze changes in fluid properties between different locations in a system.

Static fluids simplify Bernoulli's equation to p2 = p1 + ρgh1. Pressure increases with depth in static fluids, as velocity terms are zero. The hydraulic head form of Bernoulli's equation is v^2/2g + p/ρg + z = constant (v in ft/s, g in ft/s², p in psi, ρ in lb/ft³, z in ft). Scientists utilize this version to express fluid energy in terms of equivalent fluid height. Bernoulli's principle finds applications in fields, including aerodynamics, hydrodynamics, and fluid mechanics. Airplane wings generate lift, and wind turbines maximize energy extraction based on this fundamental fluid dynamics concept.

What is the application of Bernoulli's theorem?

Bernoulli's theorem is used in fluid mechanics to predict and analyze fluid flow behavior. Venturi meters measure flow rates using pressure drops across pipe sections.

Fluid velocity increases correspond to pressure decreases, maintaining constant total energy. Fluid acceleration through narrowed sections causes pressure drops, enabling flow rate measurements. Venturi meters utilize this effect for flow quantification. Pressure differences across constrictions are measured and calibrated to determine flow rates.

Aerodynamics relies on Bernoulli's principle for flight mechanics. Airfoils generate lift by creating pressure differences between upper and lower surfaces. Faster air movement over curved upper wing surfaces reduces pressure, producing upward force. Wind tunnels simulate these airflow conditions for aircraft design optimization. Researchers control airflow speed and pressure to study lift and drag on scaled models.

Hydraulic machinery transfers energy using Bernoulli's principle in fluid systems. Pumps and turbines manipulate fluid flow to achieve desired pressure and velocity conditions. Hydraulic systems manage fluid dynamics for machine operation across industries. Measurement instruments apply Bernoulli's theorem for flow analysis. Pitot tubes measure flow speed using pressure differentials between moving and stationary fluid. Flow velocity is determined by comparing dynamic and static pressures.

Automotive applications leverage Bernoulli's principle in carburetor design. Carburetors use the Venturi effect to enhance fuel atomization and better air-fuel mixture formation. Pressure drops in constricted sections accelerate air flow, drawing in and dispersing fuel droplets. This process ensures combustion in internal combustion engines.

What are the limitations of Bernoulli's theorem?

The limitations of Bernoulli's theorem include its assumption of incompressible fluid flow. Bernoulli's principle neglects viscosity, energy losses due to friction, and compressibility. World scenarios involve unsteady or turbulent flow, violating the steady flow assumption. Bernoulli's equation remains useful for understanding basic fluid mechanics despite these constraints.

Bernoulli's theorem assumes ideal fluid flow with inviscidity and frictionlessness. Fluids have viscosity, leading to frictional losses not accounted for by Bernoulli's theorem. Steady flow assumption requires time-invariant velocity, pressure, and density. World scenarios involve transient or oscillatory flows violating steady flow assumption. Incompressible fluid assumption maintains constant density throughout the flow. Incompressibility assumption is true for liquids but problematic for gases at high speeds.

Bernoulli's equation works with laminar flow conditions and uniform velocity profiles. Turbulent flows with chaotic behavior and eddies cannot be modeled using Bernoulli's theorem. Bernoulli's principle neglects viscous effects critical for understanding boundary layers and flow separation. Flows involve viscosity leading to energy losses and flow detachment from surfaces. Bernoulli's theorem does not account for thermodynamic work or heat transfer altering fluid energy balance. Bernoulli's equation has limitations in systems with pumps or turbines doing work on or by the fluid.

Bernoulli's principle does not factor in angular momentum or rotational effects in flows. Bernoulli's theorem has limited applicability to flows with considerable rotational components. Bernoulli's equation applies along streamlines tangent to velocity vectors. Bernoulli's principle is localized to flow paths and does not account for cross-streamline interactions. Turbulent flows exhibit chaotic behavior violating Bernoulli's theorem assumptions of laminar and steady flow. Compressible flows involve density variations due to pressure changes violating incompressibility assumptions. Flow separation occurs when fluid detaches from surfaces due to adverse pressure gradients or high velocities. Bernoulli's equation cannot predict flow separation phenomena.

What are examples of Bernoulli's principle?

An example of Bernoulli's principle is the behavior of two vehicles moving together. Air moving between the vehicles creates low-pressure areas, causing them to be pushed toward each other.

This principle explains how airplane wings generate lift and how birds fly. The wing's curved upper surface creates faster airflow, resulting in lower pressure above the wing. Pressure difference between the upper and lower surfaces generates lift, counteracting the aircraft's weight. Air speed over the top surface reaches 50 m/s ( 164.04 ft/s), while underneath it measures 30 m/s ( 98.43 ft/s). Bernoulli's equation calculates pressure distribution around airplane wings, factoring in air density of 1.2 kg/m³ (0.075 lb/ft³) and velocity over the surface of 50 m/s (164.04 ft/s).

A paper lift experiment illustrates Bernoulli's principle in action. Blowing over a sheet of paper creates a pressure difference, causing the paper to lift. Faster air over the paper's top reduces pressure above it, while pressure underneath remains higher. Pressure difference counteracts the paper's weight with effort, demonstrating lift generation.

The Venturimeter applies Bernoulli’s principle. The device contains a constricted section called the throat, where fluid velocity increases and pressure decreases. Throat diameter measures half of the pipe's diameter, resulting in a fluid velocity increase by a factor of four. Pressure differential in the Venturimeter relates to flow rate, allowing accurate measurements.

Pitot tubes in aircraft measure airspeed using Bernoulli's principle. The tubes detect airflow's dynamic pressure by comparing total pressure at the tube front with static pressure from side ports. Bernoulli's principle calibrates airspeed indicators, guaranteeing airspeed display based on dynamic pressure difference.

Atomizers utilize Bernoulli's principle to create liquid sprays. Liquid forced through narrow nozzles experiences increased velocity and reduced pressure. Pressure drops from 10 bar to 1 bar in atomizer examples. Pressure drop creates velocity jets that break into droplets, demonstrating fluid atomization process.
