Left Turning Tendencies: Definition, Cause

Left turning tendencies are the propensity of single-engine propeller aircraft to veer leftward during takeoff and climb. Left turning tendencies involve factors including torque and pilot input. Left turning tendencies impact aircraft control and flight characteristics. Left turning tendencies relate to aerodynamic principles and engine design. Understand the causes and effects of left turning tendencies for aircraft operation.

Left turning tendencies in aircraft are caused by four factors: torque effect, P-factor, spiraling slipstream, and gyroscopic precession. These factors are associated with rotating propellers and require pilots to apply THE right rudder for directional control during takeoff and climb phases. The torque force stems from the propeller's clockwise rotation, inducing a rolling motion to the left. Power settings during takeoff and climb amplify the torque rotational moment, causing the aircraft to experience a leftward roll as engine power increases.

The angular momentum of the propeller resists changes in its plane of rotation, resulting in a precessional force 90 degrees ahead in rotation. This force yaws the aircraft's nose left. Pilots must apply right rudder pressure to counteract left turning tendencies and maintain directional control. Failure to compensate for left turning tendencies results in loss of directional control and deviation from the intended flight path.

What are left turning tendencies?

Left turning tendencies are four factors affecting aircraft: torque, spiraling slipstream, P-factor, and gyroscopic precession. These tendencies cause aircraft to veer left during takeoff when power is high and airspeed is low. Pilots must counteract these effects to maintain directional control.

The four left turning tendencies impact aircraft behavior and present difficulties for pilots. Torque Effect creates a reaction torque due to propeller rotation, causing the aircraft to roll left. The yaw moment generated by the Torque Effect is pronounced during high-power, low-speed conditions. Spiraling Slipstream produces asymmetric airflow around the fuselage, forming a vortex that strikes the left side of the vertical stabilizer. The resulting force yaws the aircraft's nose to the left, requiring right rudder input for correction.

P-Factor occurs due to blade angle differential between the ascending and descending propeller blades. The descending blade experiences a higher angle of attack, creating thrust asymmetry that yaws the aircraft left. Gyroscopic Precession results from the angular momentum of the spinning propeller. The precessional force causes the aircraft's nose to pitch down and yaw left during takeoff acceleration.

Left turning tendencies pose issues for pilots, especially during takeoff and climb phases. Pilots must adjust rudder input to keep the aircraft tracking straight on the runway and maintain heading during initial climb. Understanding and management of these factors are fundamental for flight operations in propeller-driven aircraft.

What are the four left turning tendencies?

The four left turning tendencies are torque, P-Factor, gyroscopic precession, and spiraling slipstream. These tendencies cause propeller-driven aircraft to yaw or turn left during takeoff and slow flight when power settings are high and airspeed is low.

The four left turning tendencies are outlined below.

• Torque left turning tendency: Created by the engine's power causing a rotational force that attempts to turn the aircraft to the left, especially noticeable during high-power, low-airspeed situations.
• P-Factor left turning tendency: Resulting from asymmetrical thrust produced by propeller blades at high angles of attack, causing the aircraft to yaw to the left.
• Gyroscopic precession left turning tendency: Occurs due to the propeller's angular momentum, causing a yaw to the left during pitch changes.
• Spiraling slipstream left turning tendency: Generated by a helical airflow impacting the aircraft’s vertical stabilizer, pushing the nose left.

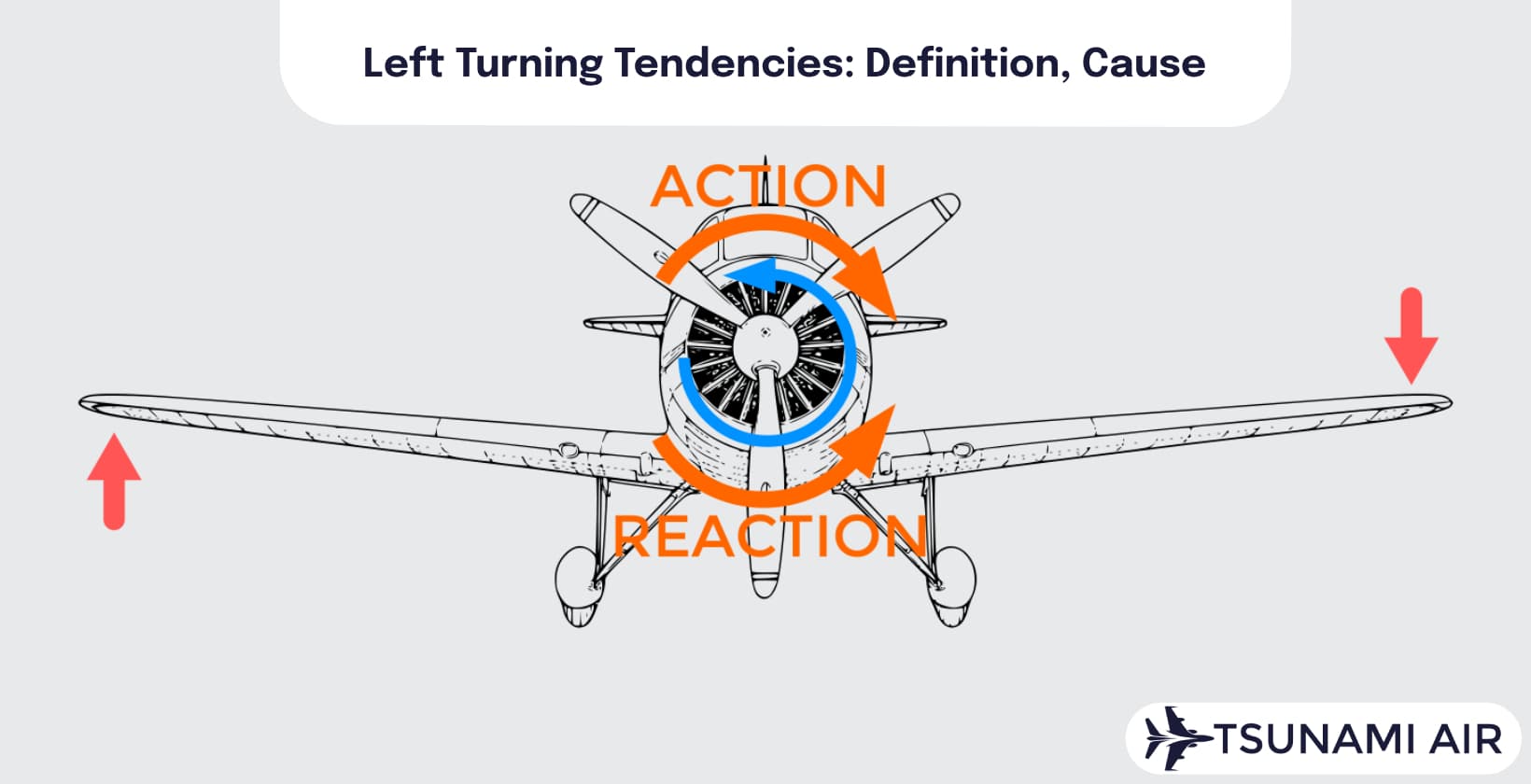

Torque creates a rotational force due to the propeller's clockwise rotation. The engine's power causes an equal and opposite reaction, attempting to rotate the aircraft to the left. Pilots counteract this effect by applying right rudder pressure and slight right aileron input. Torque reaction becomes noticeable during high-power, low-airspeed situations like takeoffs and climbs.

P-Factor results from uneven thrust produced by propeller blades at high angles of attack. The descending blade on the right side experiences a higher angle of attack, generating more lift and thrust. This asymmetry shifts the center of thrust to the right side of the propeller disc, causing a yawing tendency to the left. Pilots compensate for P-Factor by applying right rudder pressure during takeoffs and slow flight maneuvers.

Gyroscopic precession occurs due to the propeller's angular momentum acting as a gyroscope. Force applied to a rotating object affects it 90 degrees in the direction of rotation. The propeller's rotation creates a precessional force during pitch changes, causing the aircraft's nose to yaw left. Gyroscopic precession affects tailwheel aircraft more than tricycle-gear aircraft. Pilots use additional right rudder pressure to counteract this tendency, during takeoff as the tail rises.

Spiraling slipstream generates a helical airflow around the aircraft fuselage. The propeller creates a corkscrew pattern slipstream, forming a vortex that strikes the left side of the vertical stabilizer. This impact pushes the tail to the right and the nose to the left. Spiraling slipstream effects increase at speeds like during takeoff. Pilots apply right rudder pressure to neutralize the yawing tendency caused by the spiraling slipstream.

What causes left turning tendencies in aircraft?

Left turning tendencies in aircraft are caused by four factors associated with rotating propellers: torque effect, P-factor, spiraling slipstream, and gyroscopic precession. These tendencies require pilots to apply the right rudder for directional control during takeoff and climb phases.

Power settings during takeoff and climb amplify the torque rotational moment. The aircraft experiences a stronger leftward roll as engine power increases.

Spiraling slipstream creates a corkscrew pattern of rotational airflow around the fuselage. This wake turbulence strikes the left side of the aircraft's tail, inducing a yawing motion to the left. Slow airspeeds magnify the spiraling slipstream's left turning effect during takeoff and initial climb phases.

P-factor results from asymmetric propeller loading on descending and ascending blades. The descending propeller blade experiences a higher angle of attack during climbs, generating more thrust than the ascending blade. This propeller asymmetry creates a yaw moment, pulling the aircraft's nose to the left.

Gyroscopic precession occurs when force is applied to the spinning propeller disc. Angular momentum of the propeller resists changes in its plane of rotation. Applied force results in a precessional force 90 degrees ahead in rotation, yawing the aircraft's nose left.

Asymmetric thrust causes power imbalance between engines in multi-engine aircraft. Thrust differential between engines leads to yawing moments, affecting directional control. Single-engine aircraft do not experience asymmetric thrust issues.

The engine in multi-engine planes most affects directional control if it fails. Engine failure on the grave side creates an operational imbalance, requiring immediate corrective action from the pilot to maintain directional control.
