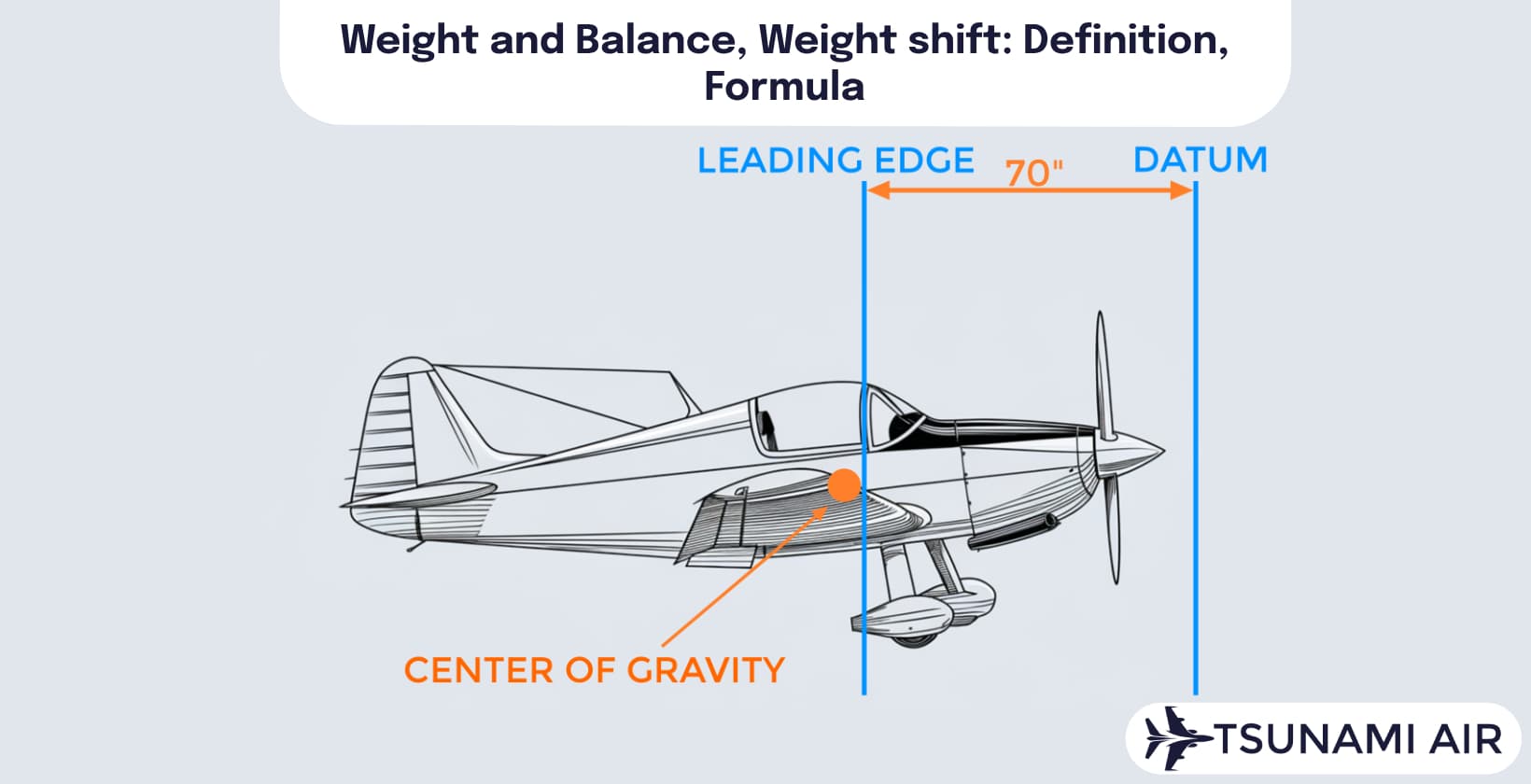

Weight and Balance, Weight shift: Definition, Formula

Weight is the force exerted on an object due to gravity. Weight distribution refers to how mass is spread across an object or system. Weight shift occurs when there is a change in the distribution of weight. Weight calculation involves determining the force acting on an object. Weight center represents the point where the weight of an object is concentrated. Understand the formula used to determine weight and its relationship to mass and gravitational acceleration.

Weight and balance sheets calculate an aircraft's weight and center of gravity. Pilots use these sheets to assure loading within acceptable ranges. The process begins with the aircraft's empty weight, which includes the airframe, engines, and fixed equipment. Pilots add weights of crew, passengers, cargo, and fuel to determine the weight. Moments are calculated by multiplying weight by arm distance. The aircraft's center of gravity (CG) is determined using moment and weight.

Weight categories in aircraft include empty weight, useful load, fuel weight, and total weight. Load represents the payload capacity and load. Arm measurements indicate the distance from the reference datum to each item's center of gravity.

Center of gravity (CG) position impacts aircraft weight distribution and balance. The process involves gathering data for the aircraft's empty weight, determining payload weight, calculating fuel weight, and measuring arm station distances. The center of gravity position is found by dividing total moment by total weight.

The weight shift formula calculates changes in the aircraft’s center of gravity. Weight shifted multiplied by distance moved divided by aircraft weight equals change in CG position. Smaller aircraft calculations use imperial units like pounds and inches. Bigger aircraft use metric units. Pilots apply these formulae to check weight distribution and maintain the aircraft's center of gravity within limits for all flight phases.

What is a weight and balance sheet?

A weight and balance sheet is a tool in aviation that calculates an aircraft's weight and center of gravity to guarantee safe loading within acceptable ranges. Weight and balance sheets start with the aircraft's empty weight, including airframe, engines, and fixed equipment. Pilots add weights of crew, passengers, cargo, and fuel to the empty weight. Calculations involve determining arm distances from a reference point (datum) for each item. Moment and weight determine the aircraft's center of gravity (CG).

Aircraft weight categories in the weight and balance sheet include empty weight, useful load, fuel weight, and total weight. Empty weight serves as the baseline structural weight specified by the manufacturer. Load represents the payload capacity and operational load. Fuel weight is deemed a consumable weight within the operational load. Total weight is the aggregate of all weight categories.

Measurements and reference points are important for weight and balance calculations. The reference datum acts as the origin point and measurement reference for all calculations. Moments are calculated by multiplying weight and arm, representing the torque effect on the aircraft.

Center of gravity (CG) considerations are vital for aircraft balance and safety. CG position directly impacts aircraft weight distribution and balance. CG management ensures aircraft configuration and aligns with design specifications. Weight and balance sheets document all calculations and procedures. Accurate documentation is vital for flight operations and safety compliance. Pilots must complete weight and balance sheets before every flight to prevent overloading or imbalance issues.

What is weight shift in aviation?

Weight shift in aviation refers to the redistribution of weight within an aircraft. Weight shift influences the center of gravity and stability during flight. Management ensures performance and safety. Aircraft use precise weight calculations for control.

Aircraft flight dynamics are influenced by weight shift. Weight redistribution alters the aircraft's center of gravity, affecting stability and control. The center of gravity (CG) serves as the balance point and center of mass for the aircraft. CG position impacts aircraft stability, with forward CG providing a stable, nose-heavy condition and rearward CG leading to instability.

Moments affect aircraft balance. The lever arm, which is the distance from the CG to the point where weight is applied, determines the force effect on the aircraft. Torque generated by weight shifts impacts aircraft balance and stability.

Aircraft loading requires careful consideration of passenger distribution and cargo placement. Weight allocation ensures the aircraft remains within stability control limits. Weight shift aircraft utilize body weight to control wing angle of attack, influencing pitch and roll. Weight shift control techniques involve adjustments to maintain yaw stability.

The weight shift formula calculates the consequences of redistributing weight on aircraft balance. Models parameterize variables including weight, arm, and moment to predict how weight redistribution affects aircraft dynamics. Weight and balance procedures optimize performance and assure adherence to safety criteria.

Weight shift impacts aircraft stability and equilibrium. Control limits and tipping margins must be managed to prevent loss of control during flight phases. Optimizing weight distribution enhances flight efficiency and safety. Aircraft balance configuration affects aerodynamic forces, including lift and drag.

How to calculate weight and balance?

To calculate weight and balance, follow the steps outlined below.

• Gather data for aircraft's empty weight, including structural weight, unusable fuel, and essential fluids.
• Determine payload weight from occupants, baggage, and cargo.
• Calculate fuel weight using fuel density; 6 pounds per gallon (0.72 kilograms per liter).
• Measure arm station distances from the reference datum near the aircraft nose.
• Compute moments by multiplying each item's weight by its arm distance.
• Add all weights to determine total weight.
• Sum up all moments to calculate the total moment.
• Find the center of gravity position by dividing total moment by total weight.
• Check aircraft loading limits, making sure weight doesn't exceed maximum gross weight.
• Verify center of gravity falls within the balance envelope from aircraft documentation.
• Adjust load if necessary, ascertaining acceptable center of gravity range.
• Account for fuel weight distribution in aircraft with multiple fuel tanks.
• Monitor changes in center of gravity position due to aircraft configuration changes.
• Account for weight shift distribution during flight due to fuel consumption.

Calculating weight and balance involves determining the aircraft's weight, computing moments, and guaranteeing the center of gravity falls within the range for flight operations. Pilots gather data including empty weight, payload, fuel weight, and arm station distances. Moments are calculated by multiplying each item's weight by its arm distance from the reference datum. Total weight is determined by adding all weights. Moment is calculated by summing all moments. Center of gravity position is found by dividing the moment by the weight.

Empty weight includes the aircraft's structural weight, unusable fuel, and essential fluids. Payload comprises the weight of occupants, baggage, and cargo. Fuel weight is calculated based on fuel density, 6 pounds per gallon (0.72 kilograms per liter) for aviation fuel. Arm station distances measure each item's distance from the reference datum near the aircraft nose.

Moments are calculated by multiplying each item's weight by its arm distance from the reference datum. Total weight is determined by adding all weights. Total moment is calculated by summing all moments. Center of gravity position is found by dividing the moment by the weight.

Aircraft loading limits must be checked to make sure the weight does not exceed maximum gross weight. The balance envelope provided in aircraft documentation defines the acceptable center of gravity range. Load adjustments are necessary if the center of gravity falls outside acceptable limits. Pilots must account for fuel weight distribution in aircraft with multiple fuel tanks. Aircraft configuration changes affect center of gravity position. Weight shift distribution changes occur during flight due to fuel consumption.

What is the importance of weight and balance in aviation?

Weight and balance in aviation is fundamental for aircraft safety and performance. Proper weight distribution ensures stability, controllability, and structural integrity. Exceeding limits affects takeoff distance, maneuverability, and fuel efficiency. Pilots must calculate and verify weight and balance before each flight to prevent accidents.

Aircraft weight considerations are pivotal for safe operations. Gross weight must not exceed Maximum Takeoff Weight (MTOW) or Maximum Landing Weight (MLW) to maintain performance and stability. Payload capacity management maximizes efficiency while staying within operational limits. Structural limits, when exceeded, lead to failures during maneuvers or turbulence.

Weight distribution and Center of Gravity (CG) location impact aircraft stability and control. CG must remain within specified limits to ascertain stable flight. Aft CG makes aircraft unstable, while forward CG makes rotation difficult during takeoff. Weight distribution maintains CG within limits, preventing loss of control during flight.

Aircraft performance is affected by weight and balance. Weight increases takeoff distance by up to 25%, requiring longer runways and compromising safety near obstacles. Overweight conditions lead to higher landing speeds and longer landing rolls, increasing accident risk. Weight and balance management optimizes aerodynamic efficiency, affecting fuel economy and reduced aircraft stress.

Flight safety and stability depend on weight and balance. Longitudinal stability is affected by CG location, with forward CG requiring more nose-up control. Lateral stability, while less directly impacted, remains important for maintaining control during flight. Weight distribution helps maintain desired attitude during flight, assuring controlled operations.

Weight shift and load distribution techniques are necessary for maintaining balance. Even passenger distribution and cargo placement avoid shifting CG outside safe limits. Loading symmetry maintenance assures aircraft stability and controllability during flight. Fuel management is vital as fuel consumption alters aircraft mass and CG position during flight.

Compliance mandates adherence to weight and balance safety standards. Aircraft must meet certification requirements regarding weight and balance to be deemed airworthy. Pilots must respect limits to guarantee safe flight operations, including weight and balance restrictions. Management of weight and balance factors is critical for minimizing accident risk and maintaining safety.

What is the weight shift formula?

The weight shift formula is a calculation used to determine changes in aircraft center of gravity based on the relationship between weight moved, distance moved, aircraft weight, and resulting CG shift. Pilots apply the formula to keep center of gravity within approved limits during loading and flight. Aircraft safety depends on maintaining weight distribution and balance. Aviation experts regard the weight shift formula fundamental for aircraft performance and stability. Small aircraft calculations use imperial units like pounds and inches, while large aircraft use metric units.

The weight shift formula simplifies to Weight * (Distance moved / Total arm). Smaller aircraft calculations use imperial units (pounds and inches). A 200-pound weight (90.72 kg) shift over 36 inches (91.44 cm) in a 100-inch (254 cm) arm aircraft results in a 72-inch (182.88 cm) CG change. Light single-engine planes, for example, a 75-pound (34 kg) shift over 24 inches (61 cm) in an 80-inch (203 cm) arm, causes a 22.5-inch (57.2 cm) CG adjustment. Larger aircraft calculations employ metric units (kilograms and meters). A 1000 kg (2204.62 lbs) weight moved 0.5 meters (1.64 feet) in a 10-meter (32.81 feet) arm aircraft produces a 0.05-meter (0.16 feet) CG shift. Medium twin-engine aircraft will see a 1102.31 lb (500 kg) weight moved 3.28 ft (1 meter) in a 26.25 ft (8-meter) arm, resulting in a 0.205 ft (0.0625-meter) CG change. Pilots apply these formulae to guarantee weight distribution and maintain the aircraft's center of gravity within acceptable limits for all flight phases.

How to find CG in weight and balance?

To find CG in weight and balance, calculate total moment by multiplying each load's weight by its distance from a reference point. Sum all moments and divide by weight. Ensure CG falls within the manufacturer's specified range for safe flight operations.

To find CG in weight and balance, follow the steps outlined below.

• Establish a reference datum near the aircraft's nose.
• Measure station positions from the reference datum.
• Determine arm distances for each load from the datum.
• Calculate total weight by summing all unit weights.
• Compute the moment of each load by multiplying its weight by its arm distance.
• Sum all moments to get the total moment.
• Divide total moment by total weight to find the center of gravity (CG).
• Plot the CG position on weight and balance charts or graphs.
• Verify the CG position is within the manufacturer's specified range.
• Adjust load positions if necessary to assure safe operations.

Engineers establish the reference datum as a fixed point on the aircraft, at or near the nose. The reference datum baseline extends from this point, serving as the origin for all station measurements. Station position markers are placed along the aircraft to aid in locating components relative to the datum.

Technicians determine station locations by measuring distances from the reference datum. Arm distances are measured in inches or centimeters from the datum to each load's center. The weight is calculated by summing all individual weights in pounds or kilograms. Moment is computed by multiplying each weight by its corresponding arm distance and aggregating all moments, resulting in pound-inches or kilogram-centimeters.

Analysts solve for the center of gravity position using the CG formula: total moment divided by total weight. The resulting CG position is plotted on weight and balance charts or graphs. Engineers verify the CG falls within the manufacturer-specified CG range for safe flight operations. Adjustments to load positions are made to shift the CG within acceptable limits.

What is moment in weight and balance?

Moment in weight and balance is the product of an item's weight multiplied by its arm, causing a rotational force that affects an aircraft's center of gravity. Moments are expressed in pound-inches (lb-in) or pound-feet units. Pilots calculate the moment of an aircraft by summing moments of all items on board. Aircraft's center of gravity (CG) location is determined by dividing the total moment by total weight. Understanding of moments is essential for maintaining safe flight operations and aircraft stability. Datum serves as the reference point for all arm measurements in weight and balance calculations.

Components of moment calculation include weight (mass), arm (distance), and the moment formula. Weight represents the mass or load of an object. Arm refers to the distance or lever from a reference point. The moment formula multiplies weight by arm to determine the rotational force. A 1000-pound (453.6 kg) aircraft unit located 5 feet (1.52 meters) from the datum creates a 5000 ft-lb (6786.8 N·m) moment.

Reference points and measurements are fundamental for accurate moment calculations. Datum origin serves as the starting point for all measurements. Station position indicates the location along the aircraft's length. Moment center acts as the pivot point for rotational forces. Aircraft use the leading edge of the wing or nose as the datum reference point.

Rotational forces and balance impact an aircraft's stability. Torque leverage from moment arms allows greater rotational force with less effort. Moment equilibrium occurs when clockwise and counterclockwise moments are equal. Center of Gravity (CG) balance point represents the aircraft's weight distribution. CG location must remain within specified limits for flight operations.

Moment calculations are vital for aircraft operations and safety. Moment stability ensures the aircraft maintains balance during flight. Moment measurement uses units of pound-inches or pound-feet. Empty weight and balance are determined using moments. Gross weight moment must stay within specified limits to prevent tipping or rotation.

How to find arm in weight and balance?

To find arm in weight and balance, calculate the moment by multiplying each item's weight by its arm. Add all weights and moments. Divide moment by weight to determine arm, representing the aircraft's center of gravity.

To find arm in weight and balance, follow the steps outlined below.

• Determine the aircraft's reference datum point to serve as the origin for arm measurements.
• Enter weight and corresponding arm values for each item in the aircraft, including empty weight, passengers, cargo, and fuel.
• Multiply the weight of each item by its arm to calculate the moment for that item.
• Sum all individual weights to calculate the total weight of the aircraft.
• Sum all individual moments to calculate the total moment of the aircraft.
• Divide the total moment by the total weight to find the arm, representing the aircraft's center of gravity.
• Verify that the calculated center of gravity (CG) falls within the limits specified in the Pilot’s Operating Handbook.
• Adjust load distribution as necessary to ascertain the CG is within safe, allowable limits.
• Recalculate the arm after any changes in the aircraft’s configuration or loading.
• Ensure ongoing adherence to CG limits throughout flight to maintain safety and performance.

The formula for calculating arm in weight and balance is: Weight × Arm = Moment, and Total Moment ÷ Total Weight = Arm. Pilots enter weight and arm values for each item in the aircraft, including empty weight, passengers, cargo, and fuel. Multiplication of weight by arm yields the moment for each item. Addition of all weights and moments provides total weight and total moment. Division of total moment by total weight results in the arm or center of gravity location.

Reference datum serves as the fixed measurement origin for all arm calculations. Arm represents the distance from datum to each item's center of gravity. Aircraft configuration and geometry influence arm values provided in the Pilot's Operating Handbook. Weight distribution and loading limits must be accounted for to assure safe flight operations. Center of Gravity (CG) acts as the aircraft's balance point, with its location determined relative to the datum. Weight shifts affect CG position, impacting aircraft stability and performance.

Application of arm calculations involves aircraft loading adjustments. Load redistribution is necessary to achieve proper balance within allowable CG limits. Recalculation of arm is required after any configuration changes or loading modifications. Pilots must make certain the CG falls within the prescribed limits for safe flight. Arm calculations are fundamental for maintaining aircraft safety, stability, and performance throughout all phases of flight.

What is the role of the datum in weight and balance calculations?

The role of the datum in weight and balance calculations is to serve as an imaginary vertical plane from which all line measurements are taken. Datum reference allows pilots to calculate moment arms for each weight section, determine the center of gravity location, and guarantee it falls within the safe range.

The datum baseline and origin serve as the starting point for all measurements in weight and balance calculations. Station measurement markers indicate distances from the datum along the aircraft's length. CG balance point determination relies on accurate measurements from the datum to each weight unit. CG position relative to the datum must fall within manufacturer-specified limits for flight operations.

Moment arm calculations involve measuring the distance from the datum to each weight item in the aircraft. The lever arm effect of each weight on the aircraft's balance is related to its distance from the datum. Aircraft loading considerations take into account the position of each item to the datum for weight distribution. Weight distribution analysis ensures the aircraft remains balanced around its CG throughout the flight.

Moments are derived by multiplying each weight by its distance from the datum. The resulting torque affects the aircraft's stability and performance during phases of flight. Pilots use the datum to compute aircraft moment by summing moments of all components. Aircraft manufacturers specify the datum location in the Airplane Flight Manual or Pilot's Operating Handbook for calculations.
