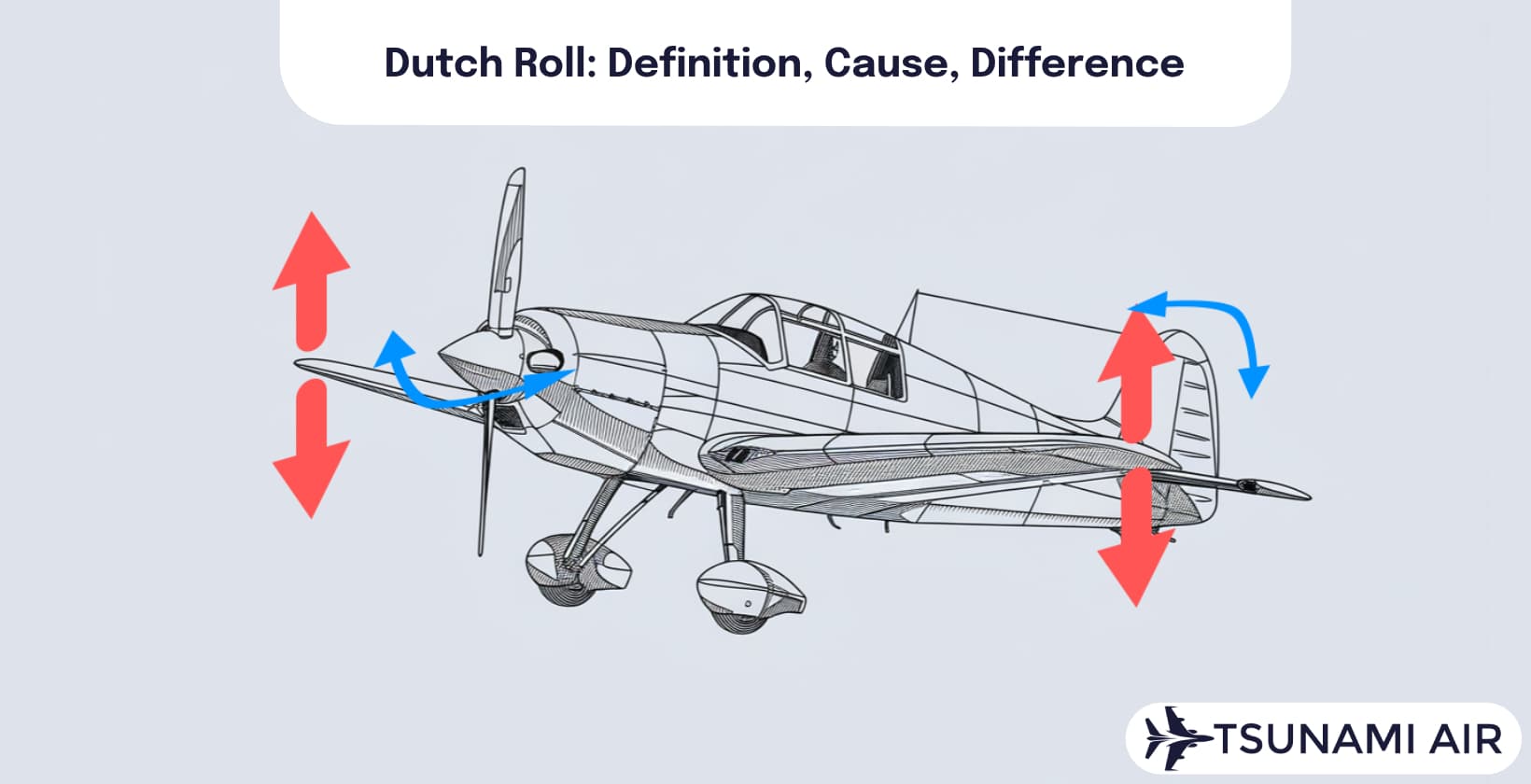

Dutch Roll: Definition, Cause, Difference

Dutch roll is an oscillatory motion experienced by aircraft in flight. Dutch roll involves attributes of stability and definition. Dutch roll affects an aircraft's lateral and directional movements simultaneously. Dutch roll relates to aerodynamic principles and aircraft design characteristics. Understand the causes and implications of Dutch roll for aviation safety and aircraft handling.

Lateral stability influences Dutch roll occurrence, with roll inertia and roll damping contributing to an aircraft's resistance to rolling motion. The vertical tail generates a force to maintain aircraft heading, and compromised vertical tail effectiveness exacerbates Dutch roll susceptibility.

Dutch roll differs from spiral instability in several key aspects of aircraft dynamics. Dutch roll involves rolling and yawing motions with frequencies between 0.5 to 2 Hz and damping ratios ranging from 0.1 to 0.5. The aircraft's nose traces a figure-eight pattern during Dutch roll. Optimal lateral-directional stability ratios are between 1.0-1.5 to mitigate both Dutch roll and spiral instability.

What is a Dutch roll maneuver?

A dutch roll maneuver is a combination of rolling and yawing movements experienced by an aircraft. Dutch roll occurs when a disturbance triggers a yaw-roll coupling cycle, causing the airplane to oscillate side-to-side. Pilots correct Dutch roll by adjusting the rudder in time with the rolling motion.

Dutch roll maneuvers consist of three components: yaw motion, roll rotation, and yaw rotation. Yaw motion causes the aircraft's nose to swing left and right. Roll rotation tilts the wings up and down. Yaw rotation pivots the aircraft around its vertical axis. Aircraft dynamics and stability play a part in Dutch roll behavior. Lateral-directional stability dynamic response determines how the aircraft reacts to disturbances. Aircraft aerodynamics influence the intensity and duration of Dutch roll oscillations. Aircraft stability and maneuverability are affected by Dutch roll characteristics.

Dutch roll oscillation frequency varies between 1-3 Hz for aircraft types. Oscillation amplitude reaches up to 30 degrees in some cases. Dutch roll coupling involves interactions between yaw and roll motions. Lateral-directional stability margin determines the aircraft's susceptibility to Dutch roll. Control and mitigation of Dutch roll rely on mechanisms. Control surfaces like ailerons and rudder are used to counteract Dutch roll motions. Yaw damper control systems apply corrective inputs to reduce oscillations. Oscillation damping mechanisms, including winglets or vertical stabilizers, help suppress Dutch roll tendencies.

What causes Dutch roll?

Dutch rolls are caused due to an imbalance between lateral stability and directional stability. Strong lateral stability combined with weaker directional stability creates conditions for Dutch roll. Aircraft with swept angles or wing configurations are prone to this oscillation between rolling and yawing motions.

Lateral stability is a factor in Dutch roll occurrence. Roll inertia and roll damping contribute to an aircraft's resistance to rolling motion. Strong lateral stability increases roll inertia, reducing roll damping effectiveness. Directional stability counteracts Dutch roll tendencies through the weather vane effect and yaw restoring force. The vertical tail generates a force to maintain aircraft heading. Compromised vertical tail effectiveness exacerbates Dutch roll susceptibility.

Wing dihedral influences Dutch roll characteristics. Dihedral angle and geometric configuration affect lateral stability and roll restoring forces. High-winged aircraft incorporate anhedral designs to mitigate Dutch roll tendencies. Yaw damping is crucial for controlling Dutch roll oscillations. Damping coefficients and friction determine the effectiveness of yaw dampers in modern aircraft. Yaw dampers apply rudder corrections to counteract yawing motion.

Roll-yaw coupling creates an oscillatory feedback loop in Dutch roll situations. Aerodynamic interactions between rolling and yawing motions perpetuate the oscillation. Swept-wing aircraft experience stronger roll stability due to the dihedral effect, while having weaker yaw stability. This stability imbalance leads to Dutch roll when lateral stability outpaces directional stability. Proper pilot training emphasizes coordinated control inputs to manage Dutch roll.

What is the difference between a Dutch roll and spiral instability in aircraft dynamics?

The difference between a Dutch roll and spiral instability in aircraft dynamics is detailed in the table below.

The difference between Dutch roll and spiral instability in aircraft dynamics is that Dutch roll involves oscillatory rolling and yawing motions, while spiral instability causes non-oscillatory rolling and yawing leading to tightening spiral descents if left. Dutch roll oscillations involve combined rolling and yawing motions with a figure-eight pattern when tracking the aircraft's nose. Swept-wing aircraft and those with considerable dihedral are susceptible to Dutch roll tendencies. Yaw dampers increase directional stability to reduce Dutch roll in many aircraft. Spiral instability causes aircraft to enter spiral dives without control inputs when directional stability exceeds lateral stability. Aircraft designers must balance lateral and directional stability to manage both phenomena.

Dutch roll involves oscillatory motions with roll-yaw coupling, occurring at frequencies between 0.5 to 2 Hz. The aircraft's nose traces a figure-eight pattern during Dutch roll, with damping ratios ranging from 0.1 to 0.5 in aircraft. Dihedral angles of 3-7 degrees and vertical stabilizer area ratios of 0.15-0.25 influence Dutch roll tendencies.

Spiral instability manifests as a divergent mode without oscillations. Aircraft experiencing spiral instability enter uncommanded turns with bank angles increasing at rates of 1-5 degrees per second. The time to double amplitude for spiral instability ranges from 10-60 seconds in aircraft designs. Lateral-directional stability ratios below 0.75 lead to spiral instability.

Longitudinal axis moments of inertia affect Dutch roll and spiral mode coupling, with values ranging from 1000 kg·m² (2205-110231 lb·ft²) to 50000 kg·m² (110231-1102310 lb·ft²). Rudder effectiveness, measured by yaw rate per degree of deflection, impacts both modes and falls between 0.1-0.5 degrees/second per degree. Lateral-directional stability balance determines susceptibility to Dutch roll or spiral instability, with optimal ratios between 1.0-1.5.

Design considerations aim to mitigate both Dutch roll and spiral instability. Dihedral angles provide roll stability, with each degree of dihedral increasing roll damping by 5-10%. Vertical stabilizer size affects yaw stability, contributing 40-60% of total directional stability. Yaw damping systems reduce Dutch roll oscillations by factors of 2-5 times. Aircraft designers balance stability modes by adjusting wing sweep (15-35 degrees), tail volume coefficients (0.04-0.08), and control surface sizing to achieve desired handling qualities.
