Axis of an airplane

An axis is a line around which an airplane rotates. Axes play a role in aircraft control and orientation. Airplane axes determine the rotation and movement of the aircraft in three-dimensional space. Axes influence the stability and maneuverability of an airplane during flight. Understand how axes impact an airplane's behavior and performance in flight conditions.

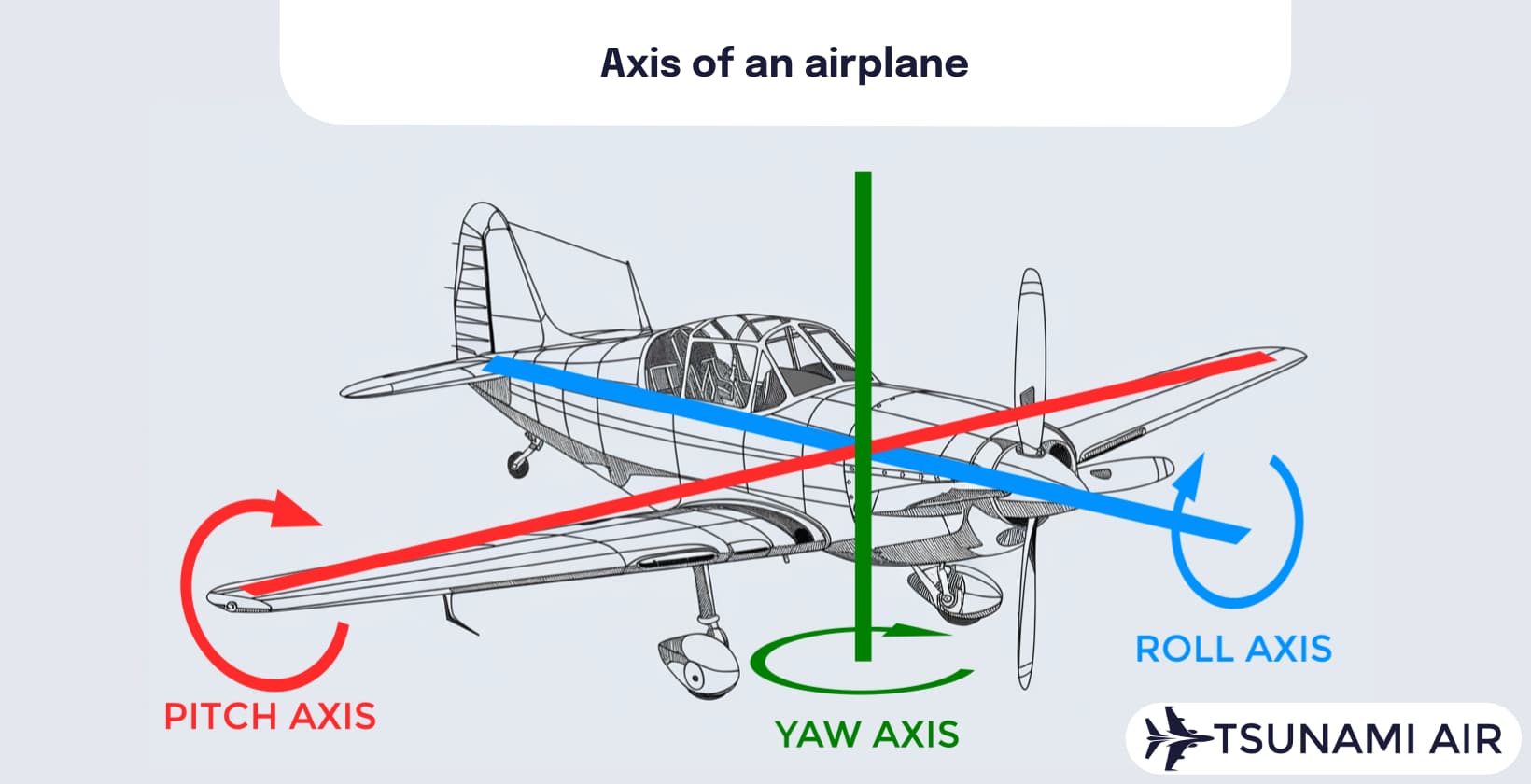

Airplanes have three axes intersecting at the center of gravity. The longitudinal axis runs from nose to tail, the lateral axis extends from wingtip to wingtip, and the vertical axis runs from top to bottom. These axes allow rotation around roll, pitch, and yaw, forming the Body-Fixed Coordinate System for reference.

The roll axis enables banking and inclination, running from nose to tail. The pitch axis allows attitude and elevation changes, extending from wingtip to wingtip. The yaw axis permits heading and turn movements, passing through the aircraft's center of gravity. Rudders control yaw by deflecting airflow and creating force.

Axis rotation impacts airplane stability and control. Weight distribution ensures flight characteristics, with the center of gravity serving as a reference point for axis movements. The axis of rotation concept extends beyond aircraft. Engineers apply axis of rotation principles when designing rotating machinery. Rigid body structure affects mass distribution and moment of inertia. Increasing mass or moving mass away from the axis increases moment of inertia in rigid bodies.

What is the axis of an airplane?

The axis of an airplane is a line for aircraft rotation. The longitudinal axis runs nose to tail, lateral axis wingtip to wingtip, and vertical axis top to bottom. Axes allow rotation around roll, pitch, and yaw.

The Body-Fixed Coordinate System provides a reference frame for understanding axis orientation relative to the aircraft. The X-axis points along the longitudinal axis, aligning with the direction of flight. The Y-axis extends to the right (starboard) side, representing the lateral axis. The Z-axis points downward, corresponding to the vertical axis. This coordinate system enables analysis of aerodynamic forces and moments acting on the aircraft.

Roll axis banking and inclination occur around the longitudinal axis, which runs from nose to tail. Ailerons control roll motion by adjusting wing lift. Pitch axis attitude and elevation changes happen around the lateral axis, extending from wingtip to wingtip. Elevators manipulate pitch by altering the horizontal stabilizer's angle of attack. Yaw axis heading and turn movements rotate around the vertical axis passing through the aircraft's center of gravity. The rudder controls yaw by deflecting airflow and creating a force.

Aircraft maneuverability results from rotations around these three axes. Pilots combine roll, pitch, and yaw inputs to execute maneuvers in three-dimensional space. Weight distribution around the center of gravity ensures balanced flight characteristics during rotations. The center of gravity serves as the reference point for all axis movements. Its position affects airplane balance and stability during flight phases.

What is the yaw axis?

The yaw axis is a vertical axis around which an aircraft or spacecraft rotates to change its direction of motion, running from top to bottom and perpendicular to the roll and pitch axes. Yaw rotation changes the aircraft's heading by twisting it left or right. Pilots control yaw using the rudder located on the tail fin. Yaw movement is important for steering and maintaining orientation during flight. Aircraft yaw rate is measured in degrees per second or radians per second. Yaw coordination with pitch and roll movements ensures flight in three-dimensional space.

The yaw axis orientation intersects with the longitudinal and lateral axes at the aircraft's center of gravity. Vertical axis alignment ensures yaw motion controlled by the rudder attached to the rear of the vertical stabilizer. Pilots deflect the rudder to generate side forces, causing the aircraft to rotate about the yaw axis and maintain directional stability. Yaw axis flight rotates the aircraft around the axis, allowing the nose to move side to side for directional control. Yaw axis aircraft design integrates the vertical stabilizer and rudder to provide stability and control during flight.

The airplane axis system includes the yaw, roll and pitch axes for understanding airplane aerodynamics and maintaining stability. Yaw axis maintains directional stability, enabling controlled flight. Intricate interactions occur between the yaw, roll, and pitch axes, requiring pilots to understand and manage these relationships. Yaw axis control occurs through the rudder, maintaining directional stability. Vertical stabilizer and rudder design allows rotation about the yaw axis, enabling pilots to adjust the aircraft's direction and navigate through flight conditions.

Yaw axis provides flight dynamics for aircraft by enabling control of the nose direction. Yaw axis interacts with other axes and control surfaces, proving vital for maintaining stability and ascertaining flight operations in aviation. Yaw axis is an integral part of the airplane axis system, contributing to flight control and aircraft performance.

What is the roll axis?

The roll axis is a line running from the nose to the tail of an aircraft. Aircraft rotate around this axis during roll maneuvers. Ailerons control the roll axis, enabling three-dimensional movement. The roll axis affects stability and is necessary for maintaining directional control.

The roll axis aligns with the aircraft's longitudinal axis, extending from nose to tail along the fuselage length. Roll axis rotation causes up-and-down wing movement, enabling banking maneuvers required for turning. Aircraft rotate around the roll axis, pitch axis, and yaw axis during flight. The roll axis intersects with other axes at the center of gravity, maintaining alignment for stable flight.

Ailerons on the wings control roll axis motion by creating lift imbalances when deflected. Pilots adjust bank angles through aileron manipulation, allowing for controlled turns and directional changes. Wings play a part in roll axis dynamics, generating the necessary lift differentials for rolling motions. Roll axis orientation remains perpendicular to both the lateral and vertical axes.

Roll axis banking enables turning maneuvers, pivotal for navigation and obstacle avoidance. Roll axis alignment prevents unwanted aircraft rotations, contributing to flight stability. The roll axis works in conjunction with the pitch axis (controlling nose up-and-down movement) and yaw axis (controlling nose side-to-side movement) to provide flight control. Maintaining center of gravity alignment with the roll axis is important for aircraft stability and controlled flight operations.

What is the pitch axis?

The pitch axis is the axis running from wing to wing in an aircraft. Pitch axis allows planes to rotate in three dimensions, altering nose angle up or down. Aircraft utilize pitch axis for vertical movement, controlled by the elevator on the horizontal stabilizer.

The pitch axis is an axis that aligns from wingtip to wingtip. Lateral axis alignment is important for maintaining pitch axis stability during flight. Pitch axis rotation results in the aircraft's nose moving up or down. Elevator pitch control involves deflection of the elevators to change the pitch angle.

Pitch axis tilt refers to the angle of the pitch axis relative to the horizontal plane. Wing lift is affected by changes in pitch axis tilt. The horizontal stabilizer affects pitch axis stability. Horizontal stabilizer balance ensures stable flight by counteracting the effects of changes in wing lift during pitch movements.

Roll axis rotation causes the aircraft to bank or tilt to one side. Ailerons control the roll axis rotation, which is different from pitch axis movements. Yaw axis rotation causes the aircraft to turn left or right. The rudder controls yaw axis direction and rotation of pitch axis movements.

The pitch axis acts as a pivot point for the aircraft to adjust its attitude. Pitch axis pivot is needed for ascending, descending, and maintaining level flight. Wing structure design is decisive for generating lift during flight. Changes in pitch affect the angle of attack, influencing the lift generated by the wings.

What is an axis of rotation?

An axis of rotation is a line around which objects rotate. Earth's axis demonstrates this concept, completing one rotation every 24 hours. Rotating bodies maintain shape while turning around axes. Engineers use axis of rotation principles for designing rotating machinery.

The axis of rotation is defined by its direction and orientation in space. Engineers visualize the axis as an extending line passing through the rotating object. The axis remains invariant during rotation, with all points on the axis staying stationary. Physicists consider a point on the axis as a fixed point around which rotation occurs. The axis orientation determines the direction of motion, either clockwise or counterclockwise.

Rotational motion involves circular paths around the axis of rotation. The rotation angle quantifies the amount of rotation around the axis. Rigid body structure affects mass distribution and moment of inertia relative to the axis. Increasing mass or moving it from the axis increases the moment of inertia in rigid bodies.

Aircraft rotate around three axes: roll, pitch, and yaw. The roll axis runs through the aircraft's body. Ailerons control rotation around the roll axis. The pitch axis extends through the wings. Elevators control rotation around the pitch axis. The yaw axis runs vertically through the center of the aircraft. Rudders control rotation around the yaw axis.

What is the aircraft stability axis?

The aircraft stability axis is a coordinate system for analyzing aircraft stability and control. X-axis aligns with velocity vector, Y-axis points right, and Z-axis points downward. Rotations by angle of attack (α) and sideslip angle (β) transition body-fixed axes to stability axes.

The stability axis system configuration rotates the body axis system about the Y-axis by the angle of attack and sideslip angle. This alignment simplifies aerodynamic calculations by orienting the X-axis with the airflow direction. Stability axis system measurements are taken indirectly using the body axis system and transformed for analysis. The system provides a framework for analyzing aircraft stability and control characteristics, including longitudinal (pitch), lateral (roll), and directional (yaw) stability.

The longitudinal axis runs from the aircraft's nose to tail, aligning with the fuselage centerline. It serves as a reference for pitch motion and is important for maintaining a steady angle of attack. The lateral axis extends from wing tip to wing tip, perpendicular to the longitudinal axis. Its rotation causes roll motion, influenced by factors including wing dihedral and center of gravity location. The vertical axis runs from top to bottom of the aircraft, acting as a pivot for yaw motion controlled by the rudder. Vertical tail size and position affect directional stability around this axis.

The center of gravity (CG) is located near the middle of the aircraft, serving as the pivot point for all three axes. CG balance directly impacts the aircraft's stability and control characteristics. A forward or aft CG position affects longitudinal stability, while proper mass distribution around the CG is required for maintaining stable flight in all axes.
