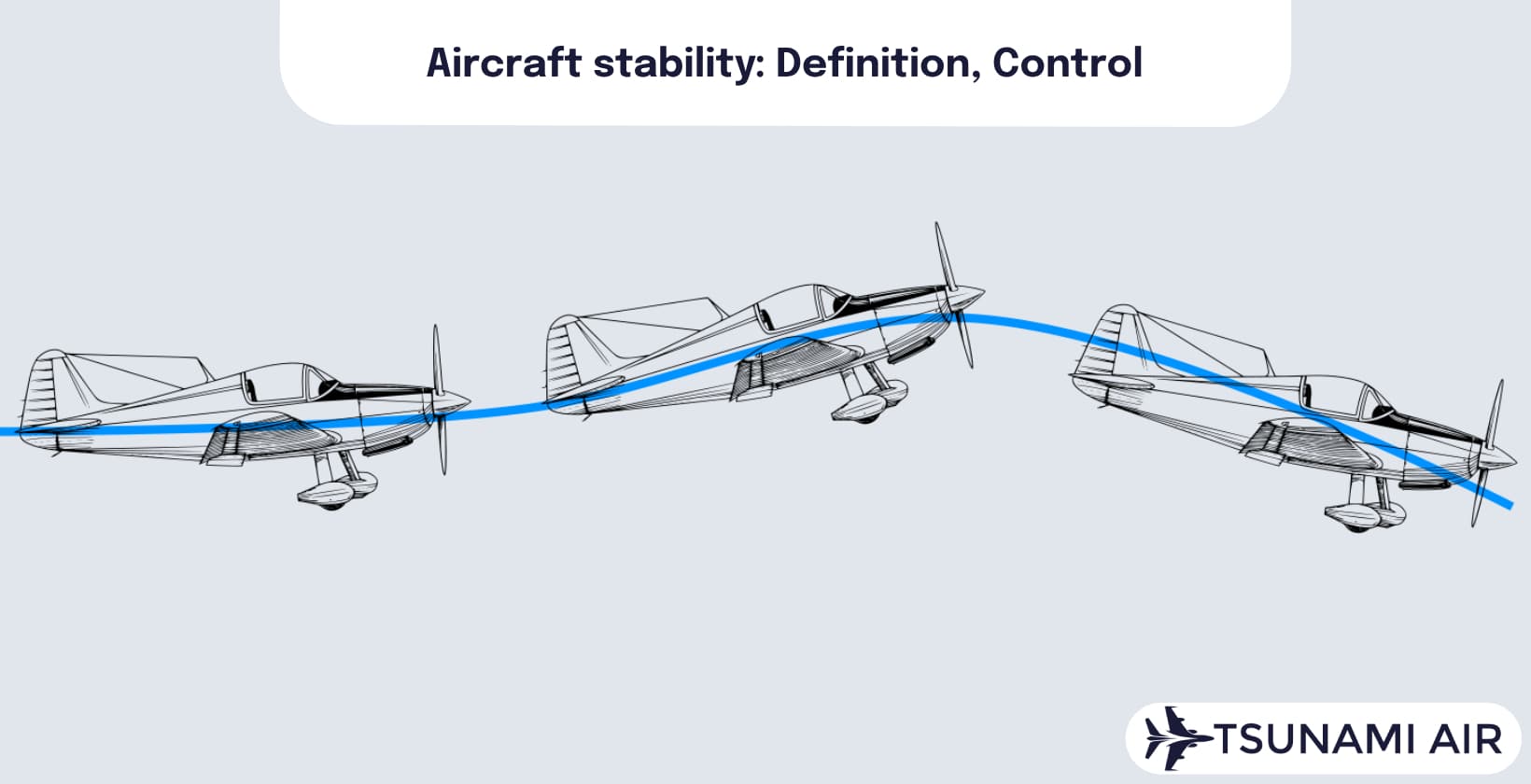

Aircraft stability: Definition, Control

Aircraft stability is the ability of an aircraft to maintain its flight attitude and return to equilibrium after encountering disturbances. Aircraft stability involves control systems, axis considerations, flight dynamics, and performance characteristics. Aircraft stability relies on aerodynamic principles and influences the aircraft's attitude during flight conditions. Aircraft stability impacts the handling qualities and safety of the aircraft. Understand aircraft stability's definition, components, and its role in aviation.

Aircraft stability controls ascertain safe and efficient operation. Flight controls manage stability around three axes: pitch, roll, and yaw. Elevators control pitch stability, ailerons affect roll stability, and rudders influence yaw stability. Control surfaces create aerodynamic forces to maintain stability through deflections. Coordination of flight controls keeps the aircraft stable and responsive to pilot inputs.

Stability Augmentation Systems (SAS) enhance dynamic stability by dampening oscillations. Control laws use algorithms to process feedback and determine control inputs for stability. Trim systems balance the airplane by adjusting control surfaces, reducing pilot workload across flight regimes.

Center of gravity position impacts aircraft stability. Proper mass distribution ensures the center of gravity remains within limits, within 25-35% of the mean aerodynamic chord. Stabilizers provide restoring moments through their aerodynamic design, with effectiveness depending on size, shape, and positioning.

What is aircraft stability?

Aircraft stability is the ability to return to stable flight condition after disturbances. Stability ensures safe flight and allows aircraft to maintain paths. Static stability measures initial response, while dynamic stability evaluates behavior over time. Stability is essential for designing and operating aircraft in three dimensions.

Aircraft stability relies on concepts of equilibrium and restorative forces. Equilibrium balance occurs when all forces and moments acting on the aircraft are in harmony. Stability equilibrium requires the aircraft to return to its original state after a disturbance. Restorative forces act to bring the aircraft back to equilibrium when disturbed. Restoring moments counteract any deviations from the equilibrium position.

Static and dynamic stability are two types of aircraft stability. Static stability refers to the initial response of an aircraft to a disturbance, characterized by a restorative moment that tends to return the aircraft to its original attitude. Dynamic stability describes the aircraft's behavior over time following a disturbance, involving oscillations that decrease in amplitude due to damping effects. Aircraft stability is analyzed around three axes: pitch, roll, and yaw. The pitch axis concerns vertical plane motion, the roll axis involves rotation around the longitudinal axis, and the yaw axis pertains to rotation around the vertical axis.

The center of gravity position and mass distribution play roles in determining stability characteristics. Aerodynamic forces including lift, drag, and moments act on the aircraft and affect its stability. Control surfaces, including ailerons, elevators, and rudders, provide the necessary restorative forces to maintain equilibrium. Their effectiveness and deflection impact the aircraft's stability.

Aircraft design incorporates stability considerations to guarantee safe and efficient operation. Stability characteristics are engineered into the aircraft's structure and aerodynamics. Modern aircraft feature stability systems that enhance both static and dynamic stability. Flight control systems allow pilots to input commands and adjust the aircraft's attitude and trajectory. Pilot input and control are fundamental for maintaining stability during flight. Pilots must manage the aircraft's attitude, make adjustments, and respond to disturbances to maintain stable flight conditions.

What is the aircraft stability axis?

The aircraft stability axis is a coordinate system for analyzing aircraft stability and control. The X stability axis aligns with the velocity vector in flight, simplifying aerodynamic force analysis. The Z stability axis lies perpendicular to X in the aircraft's plane of symmetry. Angle of attack defines X stability axis relative to body axis.

The Stability Axis System aligns with the direction of airflow during steady flight. This alignment simplifies the analysis of aerodynamic forces and moments. The Body Axis System uses a right-handed Cartesian coordinate system fixed to the aircraft. The X body axis points forward along the aircraft's longitudinal axis, the Y body axis points to the right, and the Z body axis points downward. The Stability Axis System rotates from the Body Axis System to align with airflow direction. The X-Stability Axis aligns with airflow in flight, while the Y-Stability Axis remains the same as the Y body axis.

The X-Stability Axis aligns with the projection of the aircraft's velocity vector onto its plane of symmetry. This alignment allows for analysis of longitudinal stability related to pitch. The coordinate system rotates about the Y body axis by the angle of attack. The rotation aligns the X-Stability Axis with the direction of airflow for flight conditions.

Aircraft possess three axes of rotation: Longitudinal, Lateral, and Vertical. The Longitudinal Axis runs from the nose to the tail of the aircraft, controlling roll. Ailerons influence movement around this axis, necessary for banking maneuvers. The Lateral Axis runs from one wing tip to the other, controlling pitch. Elevators influence movement around this axis. The Vertical Axis runs from the top to the bottom of the aircraft, controlling yaw and affecting directional stability. The rudder influences movement around this axis, maintaining aircraft heading.

What controls aircraft stability?

Aircraft stability is controlled by flight controls. Elevator, ailerons, and rudder affect pitch, roll, and yaw. These surfaces create aerodynamic forces to maintain stability. Coordination of flight controls ensures aircraft remain stable and responsive to pilot inputs.

Flight controls must respond to pilot inputs for stability. Responsiveness ensures aircraft reaction to disturbances. Precision allows for adjustments to maintain flight. Reliability guarantees performance across flight conditions.

Control surface deflection affects the airplane's aerodynamics and stability. Configuration of control surfaces maximizes their effectiveness in creating stabilizing forces. Aerodynamic design of control surfaces alters airflow around the aircraft to generate moments for stability.

Stabilizers provide necessary restoring moments through their aerodynamic design. The effectiveness of stabilizers depends on their size, shape, and positioning on the aircraft. Tail assembly configuration affects stability by generating restoring forces.

A forward center of gravity enhances stability, while an aft position reduces it. Proper mass distribution ensures the center of gravity remains within safe limits to prevent instability.

Control systems incorporate feedback loops to monitor and adjust the aircraft's state. Actuation mechanisms move control surfaces quickly and precisely to respond to disturbances. Integration with aircraft systems ensures coordinated stability responses.

Stability Augmentation Systems (SAS) dampen oscillations to enhance dynamic stability. SAS feedback loops monitor aircraft attitude and apply corrections to maintain stable flight. Control laws use algorithms to process feedback and determine necessary control inputs for stable flight.

Trim systems help balance the airplane by adjusting control surfaces. Trim systems allow pilots to tune aircraft trim for different flight regimes. Trim reduces pilot workload and maintains stability across flight conditions.
