Cessna 172: Definition, Difference, Specs, Procedure, Systems

Cessna 172 is a single-engine, four-seat aircraft widely recognized for its reliability and versatility in general aviation. The systems of Cessna 172 include avionics, fuel, electrical, and hydraulic components designed for optimal performance. Specifications of Cessna 172 encompass its dimensions, engine type, payload capacity, and cruise speed. Understand the integration of these elements to appreciate the engineering behind Cessna 172.

Differences between the Cessna 172 and 150 lie in size, performance, and utility. The Cessna 172 features a larger wingspan of 36 feet 1 inch (11.00 meters) and a length of 27 feet 2 inches (8.28 meters) compared to the smaller Cessna 150. The 172 accommodates one pilot and three passengers while the 150 supports only two occupants. The Lycoming O-320 engine in the 172 generates 160 horsepower, surpassing the Continental O-200-A engine in the 150 which produces 100 horsepower. These differences result in higher cruise speeds and greater payload capacity for the 172.

Specifications of the Cessna 172 include a maximum takeoff weight of 2,550 pounds (1,157 kilograms) and a fuel capacity of 43 gallons (163 liters). The high-wing configuration enhances visibility and stability during flight operations. The tricycle landing gear improves ground handling and reduces the risk of ground loops. The airframe consists of aluminum alloy with steel reinforcements in areas like the tail and landing gear.

Starting the Cessna 172 involves a systematic procedure. The pilot completes pre-flight checks before initiating the engine start sequence. The fuel selector sets to the left tank to assure proper fuel flow. The parking brake engages to secure the aircraft. The master switch activates electrical power while the throttle control adjusts to an optimal airflow setting. The mixture control moves to the full rich position and the carburetor heat sets to OFF. The primer delivers fuel into the engine cylinders and the ignition switch turns to START while managing throttle controls.

The cockpit of the Cessna 172 organizes instruments and controls. Primary flight instruments cluster in a "six-pack" arrangement for clarity. Engine instruments group together for performance monitoring. Flight controls include a yoke for roll and pitch adjustments. Modern variants integrate glass displays alongside traditional instrumentation. Avionics systems include Garmin GPS technology and VHF communication radios for navigation purposes.

The Cessna 172’s fuel system integrates vented wing tanks holding up to 28 gallons (106 liters) of fuel per tank. An engine-driven primary pump supports redundancy while an auxiliary electric pump provides backup functionality. The engine system features an air-cooled, horizontally-opposed configuration. Propeller options include fixed-pitch or constant-speed designs. The electrical system operates on a 12-volt or 24-volt battery power supply. The landing gear system simplifies ground handling with a fixed strut design. The braking system applies hydraulic pressure through cockpit foot pedals.

What is the Cessna 172?

The Cessna 172 is a single-engine, four-seat, fixed-wing aircraft widely regarded as one of the most popular and reliable trainers in aviation history. The Cessna 172, known as the Cessna Skyhawk, is a four-seat aircraft with fixed wings. Engineers designed the Cessna 172 with tricycle landing gear, making it easier to handle for beginners. The maximum speed of early models reaches 131 mph (211 km/h), while later models cruise at 124 knots (229 km/h). Developers upgraded the aircraft from the 1948 Cessna 170, equipping it with a Continental O-300 engine producing 145 horsepower (108 kW). The Cessna 172 first marketed in 1955, establishing itself as one of the safest and most reliable trainers in aviation history.

The Cessna 172 operates as a light aircraft in the general aviation sector, serving as a training aircraft. The Cessna 172 Skyhawk features tricycle landing gear, which enhances stability during taxiing, takeoff, and landing procedures. The tricycle landing gear design reduces the risk of ground looping and includes a nose wheel along with two main wheels. Engineers designed the aircraft with a fixed-wing configuration, enabling predictable handling for pilots. The Cessna 172 wingspan measures 36 feet 1 inch (11.00 meters), while its length reaches 27 feet 2 inches (8.28 meters). A maximum takeoff weight of 2,550 pounds (1,157 kg) and seating capacity for one pilot and three passengers make the Cessna 172 type ideal for flight training schools.

The Cessna 172’s history traces back to its origin from the 1948 Cessna 170, with the first Cessna 172 model introduced in 1956. Equipped initially with a Continental O-300 engine producing 145 horsepower (108 kW), later variants were upgraded to the Lycoming IO-360-L2A engine, generating 180 horsepower. The Cessna 172 achieves a maximum cruise speed of 124 knots (230 kilometers per hour) and a service ceiling of 14,000 feet (4,267 meters). Over decades, the Cessna Aircraft Company manufacturer has produced over 43,000 units of the Cessna 172, making it one of the most produced aircraft in history.

The Cessna 172 trainer plays a central part in pilot training due to its forgiving nature and stable flight characteristics. Flight schools favor the Cessna 172 for its ease of operation and reliability, contributing to the training of pilots worldwide. The Cessna 172 performance specifications include a maximum range of 640 nautical miles (nm) and a rate of climb of around 730 feet per minute (fpm). Design features like a high-wing configuration enhance visibility and stability during flight, reinforcing the aircraft's reputation in the general aviation aviation sector.

Is a Cessna 172 a bush plane?

No, a Cessna 172 is not inherently a bush plane but can adapt for bush flying through modifications that enhance its STOL performance and rugged field operations. Bush planes require improved STOL performance, achieving takeoffs in 300 feet (91 meters) or less. The Cessna 172's baseline takeoff distance measures 960 feet (292.6 meters) for ground roll and 1,630 feet (497.1 meters) over a 50-foot (15.2 meters) obstacle. Modifications reduce the takeoff distance to 400-700 feet (122-213 meters) depending on weight. Bush planes operate efficiently on rough, unprepared fields with robust landing gear. The Cessna 172’s standard configuration lacks these features but adapts through engine upgrades and larger tires.

A stock Cessna 172 exhibits limitations for bush flying due to its standard takeoff and landing distances. The Cessna 172 takeoff requires 960 feet (292 meters) for ground roll and 1,630 feet (500 meters) over a 50-foot (15 meters) obstacle, while landing demands 575 feet (175 meters) for ground roll and 1,335 feet (407 meters) over the same obstacle. These figures exceed the performance of dedicated bush planes, which achieve takeoffs and landings in 300 feet (91.44 meters) or less. The tricycle landing gear of the Cessna 172 suits general aviation training but lacks durability for rough terrain. Modifications like STOL kits, larger tires, and reinforced landing gear reduce the takeoff distance to 400-700 feet (122-213 meters) depending on weight. High-wing configuration upgraded visibility benefits field operations by providing better clearance and protection during rugged landings.

The Cessna 172 model compares unfavorably with purpose-built bush planes in terms of STOL capability and ruggedness. Bush planes feature engines ranging from 180 to 230 horsepower and specialized propellers designed for low-speed thrust. The Cessna 172 engine, a Lycoming IO-360-L2A producing 180 horsepower, supports general aviation needs but does not optimize extreme short-field performance. The standard McCauley 2-blade metal propeller of the Cessna 172 is replaced with an STOL propeller to get better thrust at low speeds. Rugged field operations durability defines bush planes, which operate efficiently on unprepared surfaces. The Cessna 172 configuration prioritizes stability and ease of handling, making it ideal for training usage but requiring upgrades for bush flying.

The bush planes feature increased STOL performance, robust airframes, and off-airport capability. The Cessna 172 range of 640 nautical miles suits general aviation but falls short for extended bush operations without additional fuel tanks. Modifications bring the Cessna 172 closer to bush plane standards by addressing takeoff and landing distances. A modified Cessna 172 achieves takeoff distances of 400-700 feet (122-213 meters), depending on weight, through the installation of STOL kits and larger tires. Bush plane rough field suitability relies on durable landing gear and airframes, features absent in the baseline Cessna 172 but attainable through targeted upgrades. The high-wing configuration wing placement enhances pilot visibility, aiding spotting of obstacles during remote landings.

What are the differences between the Cessna 172 and 150?

The differences between the Cessna 172 and 150 are explained in the table below.

The Cessna 172 engine specifications include the Lycoming O-320 engine, which generates 160 HP, surpassing the Cessna 150's Continental O-200-A engine producing 100 HP. This difference in horsepower directly impacts performance data, with the Cessna 172 achieving a cruise speed of 210 km/h (130 mph) compared to the Cessna 150's 140 km/h (87 mph). The higher power output of the Cessna 172 allows for greater operational efficiency and increased capabilities during cross-country flights. The Cessna 150 demonstrates lower fuel consumption rates averaging 6–7 US gallons per hour, making it more economical for shorter missions or flight training purposes. Seating capacity highlights another distinction, as the Cessna 172 accommodates four passengers while the Cessna 150 supports only two. Weight differences further emphasize this divide, with the Cessna 172 possessing a maximum operating weight of 1,045 kg (2,303 lbs) compared to the Cessna 150’s 680 kg (1,499 lbs). These variations in weight allow the Cessna 172 to carry heavier payloads, improving its versatility for both passenger transport and baggage capacity. The structural design of the Cessna 172 reflects its ability to handle larger loads without compromising performance or safety margins. Fuel capacity represents another key contrast, as the Cessna 172 holds 43 gallons (162.8 liters) of fuel, enabling a range of 1,030 kilometers (640 miles). In comparison, the Cessna 150 carries 26 gallons (98.42 liters), limiting its range to 640 kilometers (397.68 miles). The increased fuel tank size of the Cessna 172 contributes to extended flight endurance, making it suitable for longer journeys. Fuel consumption rates align with engine specifications, where the Cessna 172 requires more fuel due to its higher horsepower but compensates with superior range capabilities. Dimensions reveal notable physical disparities between the two aircraft. The Cessna 172 features a wingspan of 10.86 meters (35.63 feet), exceeding the Cessna 150’s 9.96-meter (32.68 feet) span. This aerodynamic advantage enhances lift generation and stability during flight operations. Length measurements show the Cessna 172 at 8.2 meters (26.9 feet) versus the Cessna 150’s 7.47 meters (24.5 feet), while height values are 2.68 meters (8.8 feet) and 2.59 meters (8.5 feet) respectively. These dimensional differences influence handling characteristics and storage requirements, with the Cessna 172 demanding more hangar space due to its larger profile.

The differences between the Cessna 172 and 150 include variations in engine power, seating capacity, weight, fuel capacity, and overall performance capabilities.

What is the difference between a Cessna 172 and a Cessna 182?

Differences between a Cessna 172 and a Cessna 182 are explained in the table below.

Aircraft performance rate of climb differs , with the Cessna 172 achieving 730 ft/min (222.5 m/min) and the Cessna 182 reaching 925 ft/min (281.9 m/min). Aircraft dimensions, wingspan and length show notable distinctions between the two models. Both aircraft incorporate a high-wing structural design wing configuration, but the Cessna 182 includes a more robust structure to accommodate its increased weight and power. Structural design elements in both models prioritize visibility and access, though the Cessna 182's design supports higher performance demands. Payload capacity passenger capacity highlights further differences. The Cessna 182’s higher payload capacity makes it suitable for longer flights requiring additional fuel, passengers, or cargo.

The difference between a Cessna 172 and a Cessna 182 is that the Cessna 182 features a higher-output engine, higher payload capacity, and better performance metrics compared to the Cessna 172. The Cessna 182 achieves a maximum cruise speed of 154 knots, compared to the Cessna 172's cruise speed of 124 knots. A rate of climb of 925 feet (282 meters) per minute in the Cessna 182 surpasses the 730 feet (223 meters) per minute in the Cessna 172. The Cessna 182 has a maximum takeoff weight of 3,100 pounds (1,406 kilograms), offering a useful load of around 1,130 pounds (513 kilograms), while the Cessna 172's gross weight is 2,450 pounds (1,111 kilograms) with a useful load of about 800 pounds (363 kilograms).

What are the Cessna 172 specs?

The Cessna 172 specs are given in the table below.

The fuselage and wings consist of aluminum alloy, while steel and other metals reinforce components like the tail and landing gear. Optional constant-speed propellers are available on some models. The Cessna 172 avionics navigation systems include Garmin or similar GPS systems in newer models, while older models feature VOR/ILS capability. Communication systems incorporate VHF comm radios, and instrumentation includes basic flight instruments. The Cessna 172 landing gear type is tricycle, featuring fixed, non-retractable gear. These systems assure reliable ground handling and operational safety.

What is the performance of a Cessna 172?

The performance of a Cessna 172 is given in the table below.

The Cessna 172 achieves short-field takeoff performance with a ground roll distance of less than 1,000 feet (304.8 meters) when operating at maximum weight under standard conditions. These metrics depend on braking efficiency and runway surface conditions. Weight distribution, including fuel and payload, directly impacts takeoff and landing distances, requiring pilots to calculate performance adjustments for optimal safety. The rate of climb for the Cessna 172 measures about 700 feet (213.36 meters) per minute under standard conditions, with takeoff climb performance optimized by leaning the mixture above 3,000 feet (914.4 meters) for maximum RPM. Cruise speeds include an optimal cruise speed of 111 knots and a maximum cruise speed of up to 123 knots, offering flexibility for various mission profiles. The stall speed of the Cessna 172 achieves 47 knots with flaps down and power off for stable handling during key phases. Variations in weight affect these performance metrics, as increased payload or fuel load reduces climb rates and extends takeoff and landing distances. Environmental factors like altitude, temperature, and wind influence the operational capabilities of the Cessna 172. Higher altitudes and warmer temperatures decrease engine performance, reducing climb rates and maximum range. Wind conditions impact both takeoff and landing distances, with headwinds enhancing performance and tailwinds increasing required runway lengths. Fuel consumption rates average between 8-10 gallons per hour (30.28-37.85 liters per hour) during cruise, but variations occur based on flight regime and environmental conditions. The service ceiling of the Cessna 172 operates at a maximum altitude of 13,000 feet (3,962 meters), limiting its operational envelope in high-altitude environments. Different Cessna 172 variants exhibit variations in engine efficiency and performance metrics. Fuel burn rates remain consistent across variants, averaging 8-10 gallons (30.28-37.85 liters) per hour, but newer models incorporate improvements in avionics and aerodynamics that enhance overall efficiency. Maximum range extends up to 730 nautical miles under optimal conditions, with fuel endurance lasting around 5-6 hours depending on flight conditions. These specifications highlight the adaptability of the Cessna 172 across different operational requirements and missions.

What are the engine specs of the Cessna 172?

The engine specs of the Cessna 172 are given in the table below.

The Lycoming IO-360-L2A engine in the Cessna 172S produces 180 horsepower at 2,400 revolutions per minute, while the version in the Cessna 172R is derated to 160 horsepower at the same RPM. This four-cylinder, horizontally opposed piston engine has a displacement of 361 cubic inches (5.9 liters), contributing to its classification as a robust powerplant for the 172 Skyhawk. A compression ratio of 8.5:1 ensures efficient combustion and performance, making the Lycoming IO-360 a reliable choice for general aviation. The engine employs a Precision Airmotive Injector for precise fuel delivery, with fuel consumption ranging from 10 to 12 US gallons (38 to 45 liters) per hour depending on operating conditions. An air-cooling system regulates engine temperature effectively, simplifying maintenance while maintaining optimal operating conditions. The Lycoming IO-360 series engines weigh 300 pounds (136 kilograms), a manageable figure that aligns well with the design parameters of the Cessna 172 airframe. This weight contributes to the aircraft's balanced performance, during takeoff and climb. The maximum takeoff weight for the Cessna 172R is 2,450 pounds (1,111 kilograms), while the Cessna 172S accommodates up to 2,550 pounds (1,157 kilograms), demonstrating the versatility of these aircraft in training and private flying scenarios.

How to start a Cessna 172?

To start a Cessna 172 follow the steps explained below.

• Complete all pre-flight checks and make sure required documents are onboard.
• Remove covers, plugs, locks, and the control lock during pre-flight inspection.
• Set the fuel selector to the left tank to assure proper fuel flow.
• Engage the parking brake to secure the aircraft during engine start.
• Turn the master switch ON to activate electrical power.
• Adjust the throttle control to about 1/4 inch (6.35 millimeters) open for optimal airflow.
• Move the mixture control to the full rich position for increased engine performance.
• Set carburetor heat to OFF to prevent icing during engine operation.
• Prime the engine with 2-3 strokes using the primer for efficient fuel delivery.
• Turn the ignition switch to START while managing the magneto switch in LEFT or RIGHT position.
• If the engine does not start, attempt the other magneto position.
• Once the engine starts, adjust the throttle to maintain 600-700 RPM.
• Test the carburetor heat after warm-up to confirm proper operation.
• Monitor engine instruments, including oil pressure and temperature, closely
• Verify oil pressure rises within 30 seconds after engine start.
• Perform a run-up check to test magnetos and carburetor heat drop.
• Check avionics and communication equipment during post-start procedures.
• Reference the checklist to verify no essential steps are missed during the starting process.

The pre-flight inspection checklist ensures all items are completed before proceeding. The fuel selector is set to the left tank for starting, guaranteeing proper fuel flow. System verification includes checking the pitot heat operation if installed for anti-icing purposes. The master switch is turned ON to activate electrical power, enabling battery switch battery power on state. System setup involves adjusting the throttle control to about 1/4 inch (6.35 millimeters) open for idle power setting. The mixture control is moved to the full rich position for mixture adjustment for engine performance. These steps provide optimal conditions for engine start. The ignition/magneto switch is initially set to OFF during priming. The primer is used for 2-3 strokes to deliver fuel efficiently into the engine cylinders. The engine priming process prepares the fuel delivery system for ignition. Post-start verification requires completing the engine start checklist for procedural verification. The magnetic compass is verified for functionality and alignment.

To start a Cessna 172, the pilot ensures all pre-flight checks are complete, sets the fuel selector to the left tank, primes the engine, and turns the ignition switch to START while managing the throttle and mixture controls.

How to perform a Cessna 172 takeoff?

To perform a Cessna 172 takeoff follow the steps explained below.

• Align the aircraft with the runway centerline while accounting for wind direction and crosswind conditions.
• Complete all pre-takeoff checklist items, including verifying runway length, surface condition, and wind alignment.
• Set flaps to 0 degrees for a normal takeoff unless specific conditions require otherwise.
• Adjust elevator trim to stabilize the aircraft, setting it about ½ inch back from the gust lock hole.
• Advance the throttle smoothly to full power, assuring engine RPM reaches between 2,300 and 2,400 during the takeoff roll.
• Monitor airspeed closely during the takeoff roll, aiming for rotation speed (Vr) of 55 knots.
• Apply gentle back pressure on the control yoke at 55 knots to lift the nose wheel off the ground.
• Maintain directional control using rudder inputs and adjust ailerons to counteract crosswinds if present.
• After liftoff, maintain an initial climb speed of 74 knots for optimal safety and obstacle clearance.
• Retract flaps after clearing obstacles to optimize climb performance.
• Target an initial climb rate between 500 and 700 feet per minute while monitoring airspeed and altitude.
• Verify airspeed indicator accuracy and consistency between primary and standby instruments during climb.
• Ensure precise adherence to standardized procedures outlined in the Cessna 172 takeoff manual.

The Cessna 172 takeoff procedure requires precise configuration settings and pre-takeoff preparation. Flap configuration is set to 0 degrees for a normal takeoff unless specific conditions dictate otherwise, to provide optimal lift during the initial climb. Throttle settings involve smooth advancement to full power, targeting an engine RPM between 2,300 and 2,400 during the takeoff roll. Elevator input control deflection timing is crucial, with light back pressure applied at rotation speed (Vr) of 55 knots to achieve a nose-up pitch. Rotation speed (Vr) is defined at 55 knots, a critical value for achieving liftoff while maintaining directional control. Runway considerations include evaluating runway length requirements and assessing runway surface condition for suitability. Soft field or slippery conditions are accounted for during takeoff checklist completion confirmation to confirm sufficient distance for acceleration and liftoff. Alignment with the runway centerline accounts for runway wind direction and potential crosswinds, maintaining directional control during the takeoff roll. Line up procedures emphasize precise positioning on the centerline to maximize available runway length and minimize drift during throttle settings full throttle transition. Procedure application involves advancing the throttle smoothly to full power while maintaining alignment with the runway centerline. Rotation occurs at the calculated rotation speed of 55 knots by applying gentle back pressure on the control yoke. Countermeasures for crosswinds include adjusting aileron input to maintain directional stability. Pilots demonstrate proficiency by methodically advancing through each step of the checklist, verifying all Cessna 172 configuration settings, and applying techniques to address adverse conditions promptly.

To perform a Cessna 172 takeoff, the pilot must align the aircraft with the runway, advance the throttle smoothly to full power, and apply light back pressure on the control yoke at rotation speed (Vr) while all pre-takeoff items have been completed. The pilot aligns the aircraft with the centerline of the runway while accounting for wind direction and crosswind conditions.

Is the Cessna 172 tail dragger better than the standard 172 for short takeoff and landing?

Yes, the Cessna 172 tail dragger is better than the standard 172 for short takeoff and landing due to its design that enhances ground effect, reduces drag, and improves directional control. Tail draggers reduce drag during takeoff, allowing the Cessna 172 to achieve lift-off in shorter distances. Ground effect enhances lift by reducing induced drag, benefiting tail dragger configurations. Tailwheel designs maintain superior directional control on unpaved or uneven surfaces. The absence of a nosewheel fairing decreases aerodynamic drag, aiding both takeoff and landing efficiency. Pilots report landing roll reductions of up to 15% on grass or gravel runways compared to tricycle gear models.



The aerodynamic impact of tail dragger design drag characteristics contributes to short field operations. Weight distribution shifts rearward in tail draggers, augmenting ground effect considerations and lift augmentation during keyphases of flight. Ground effect considerations and runway proximity impact become more pronounced as the aircraft operates closer to the surface, reducing induced drag and increasing lift. The Cessna 172 tail dragger short runway takeoff efficiency stems from reduced drag and better pitch responsiveness, allowing for quicker rotation. A typical Cessna 172 has a takeoff distance of about 1,300 feet (396.24 meters), but tail dragger conversions reduce this figure.

Safety in short field operations depends heavily on directional control and stability. Tail draggers maintain superior control on uneven or unpaved surfaces due to the tailwheel design. Short landing performance deceleration rate remains consistent as the aircraft utilizes its rudder effectively during rollout. Aircraft configuration comparison performance differential shows that tail draggers require more pilot skill during taxiing and takeoff but excel in challenging environments. Cessna 172 crosswind handling improves with the tail dragger setup, making it suitable for rough or confined airstrips.

What is in the C172 cockpit?

The C172 cockpit is designed to enhance pilot efficiency and safety. The Cessna 172 cockpit features a well-organized layout of instruments and controls. The primary flight instruments form a cluster known as the "six-pack" for clear data presentation. The engine instruments are grouped together to provide comprehensive performance monitoring. Flight controls include a yoke for roll and pitch and pedals for rudder control. Modern glass displays complement traditional instrumentation for better situational awareness.

The primary flight instruments cluster-mounteddisplay in the C172 features the "six-pack" layout. This arrangement includes the airspeed indicator airspeed gauge, which measures speed in knots or miles per hour, and the altimeter altitude gauge, displaying altitude above sea level. The attitude indicator artificial horizon provides pitch and roll information using gyroscopic principles. The turn coordinator turn rate indicator combines turn rate and slip/skid data for coordinated turns. The heading indicator direction gauge shows magnetic heading and requires periodic adjustment to align with the compass. The vertical speed indicator rate-of-climb gauge indicates ascent or descent rates in feet per minute. Modern glass displays complement traditional gauges, to improve situational awareness through advanced visualization.

The rpm gauge engine speed gauge tracks engine rotations per minute, securing operation within safe limits. The fuel gauge fuel level indicator shows remaining fuel in gallons, aiding consumption management. The oil pressure gauge oil pressure monitor ensures adequate lubrication, preventing engine damage. The engine temperature gauge monitors engine heat, avoiding overheating. These components are logically organized, simplifying performance checks during flight.

Flight controls in the C172 cockpit include the flight control yoke control interface for pitch and roll adjustments. The control pedals rudder control manage yaw and ground steering. The throttle control regulates engine output, while the mixture control fuel-air ratio control optimizes combustion efficiency. The carburetor heat control prevents icing by introducing warm air. The flap control flap position control adjusts lift during takeoff and landing. Trim controls flight trim adjustment assist in maintaining steady flight attitudes. These controls are intuitively placed for efficient operation.

The communication radio (voice communication unit) enables contact with air traffic control and other aircraft. The navigation radio (navigation frequency receiver) processes VOR, ILS, and GPS signals. The transponder identification system transmits aircraft data to radar systems. The circuit breakers panel electrical protection module safeguards against electrical overloads for system reliability. These systems are strategically positioned for ease of access and operational efficiency.

What are the systems of a Cessna 172?

The systems of a Cessna 172 are outlined below.

• Fuel system: Two vented wing tanks, each holding up to 28 gallons (106 liters) of fuel with 26.5 gallons (100.3 liters) usable per side, aided by an engine-driven primary pump and an auxiliary electric pump for redundancy.
• Engine system: Features a Lycoming O-320-E2D four-cylinder, horizontally-opposed, air-cooled engine producing 160 horsepower, mounted on elastomeric mounts to reduce vibrations.
• Propeller system: Includes either a fixed-pitch or constant-speed propeller made from one-piece forged aluminum alloy with anodizing for corrosion resistance, with a governor in constant-speed models to maintain optimal engine RPM.
• Electrical system: Operates on a 12-volt or 24-volt battery, powered by a 60-ampere alternator, with circuit breakers in the power distribution module for overcurrent protection.
• Avionics system: Includes VHF communication radios, navigation instruments like the magnetic compass and directional gyro, and modern variants feature GPS units and autopilot systems.
• Control system: Ailerons manage roll, elevators regulate pitch, the rudder controls yaw, and flaps extend to increase lift during takeoff and landing.
• Landing gear system: Fixed strut with a castering nose gear simplifies ground handling, while main gear struts use spring-oil dampening to absorb landing impacts effectively.
• Braking system: Hydraulic brakes operate through foot pedals in the cockpit, applying hydraulic pressure to drum brakes via brake assemblies on each main gear wheel.
• Pitot-static system: Pitot tube measures dynamic air pressure for airspeed indication, assisted by static ports providing ambient air pressure for accurate readings on the altimeter and airspeed indicator.
• Lighting system: Navigation lights on the wingtips and tail enhance visibility, strobe lights boost conspicuity during night flights, and landing lights mounted on the nose gear illuminate the runway during approach and landing.

The engine system cooling system relies on airflow around the cylinders to dissipate heat during operation. Propeller system pitch mechanism utilizes a governor in constant-speed models to maintain optimal engine RPM by adjusting blade pitch dynamically. Electrical system battery operates at 12 volts or 24 volts, providing power for pre-flight checks while electrical system alternator delivers 60 amperes to recharge the battery and supply onboard systems during flight. Avionics system navigation instruments feature a magnetic compass, directional gyro, and altimeter for basic flight operations, complemented by VHF communication radios enabling air-to-air and air-to-ground communication.

The systems of a Cessna include the fuel, engine, propeller, electrical, avionics, flight control, landing gear, braking, pitot-static, and lighting systems.

What are the functions of lights on a C172?

The functions of lights on a C172 are explained below.

• Navigation lights: Red and green wingtip lights with a white tail light provide orientation and heading indicators to prevent mid-air collisions.
• Landing lights: High-intensity lights illuminate the runway during takeoff and landing, increasing visibility in low-light conditions.
• Taxi lights: Positioned for ground operations, these lights enhance visibility and guide safe maneuvering during taxiing.
• Anti-collision lights: Include red beacons and strobes to alert nearby aircraft and personnel of the aircraft’s presence.
• Beacon lights: Signal operational status and location, activating when the electrical system is on to get better situational awareness.
• Strobe lights: High-intensity flashing lights enhance visibility and serve as a warning signal to other pilots during flight.

Navigation lights consist of a red light on the left wing tip, a green light on the right wing tip, and a white light on the tail. These navigation lights position markers assure pilots can determine the relative orientation of other aircraft during flight. Navigation lights directional indicators provide clear signals about the aircraft’s heading, reducing the risk of mid-air collisions. Regulations require these lights to be operational from sunset to sunrise for consistent visibility. One electric landing light is mandatory for aircraft operated for hire. Landing lights obstacle detection assists pilots in identifying debris or hazards near the runway to enhancesafety. Taxi lights ground illumination improves visibility during nighttime taxiing, while taxi lights taxi guidance ensures accurate maneuvering on the ground. Although taxi lights are not explicitly required by regulation, their use reduces risks during ground operations. Anti-collision lights collision warning systems include red beacons and high-intensity strobe lights. Anti-collision lights safety alerts notify nearby aircraft and ground personnel of the aircraft’s presence, preventing accidents. Strobe lights alert signaling warns other pilots of the aircraft’s proximity. Strobe lights must remain on during all operations unless it’s safer to extinguish them. Beacon lights power status indication informs ground personnel when the aircraft’s electrical system is active. Beacon lights aircraft location signaling identifies the aircraft even in crowded areas, providing situational awareness. Typically located on the top of the tail, beacon lights signal the aircraft's operational status and location to others.

The functions of lights on a C172 include navigation, landing, taxi, anti-collision, beacon, and strobe lights, each serving critical roles in enhancing safety, visibility, and operational efficiency.

What is the function of the Cessna 172 nose gear?

The function of the Cessna 172 nose gear is to support the aircraft’s forward weight, provide stability during ground operations, facilitate directional control through nose wheel steering, and absorb landing shock with its air/oil strut. The nose wheel turns up to 10° on each side of center to provide precise steering capability during taxi maneuvers. Pilots steer the aircraft by applying differential braking or using the rudder pedals linked to the nose gear. The fixed tricycle landing gear configuration distributes the aircraft’s weight across three points, reducing the risk of tipping over during sharp turns or aggressive braking. The air/oil strut in the nose gear absorbs landing shock, complementing the tubular spring steel struts in the main gear. The stable pivot point of the nose gear prevents nosing over while guaranteeing stability during ground operations.

What is the function of the elevator on a Cessna 172?

The function of the elevator on a Cessna 172 is to control the pitch of the aircraft by moving the nose up or down around the lateral axis. The elevator is attached to the trailing edge of the horizontal stabilizer. The elevator changes its angle of attack, affecting the lift and balance of the aircraft. The elevator deflection mechanism controls the elevator’s movement via movement of the yoke in the cockpit. Pulling back on the yoke raises the nose, and pushing forward on the yoke lowers the nose. Elevator trim fine-tunes the elevator position for stable cruising.

The elevator deflection mechanism operates through inputs from the yoke, which are transmitted via a cable and pulley system. This system connects the control yoke to the elevator control surface, enabling precise adjustments in pitch attitude. The elevator alters the aircraft's pitch by adjusting its angle of attack, directly influencing the aerodynamic forces acting on the horizontal stabilizer. The Cessna 172 aircraft control system integrates the elevator with the horizontal stabilizer to maintain stability during flight. Horizontal stabilizer stability augmentation ensures balanced flight by preventing excessive pitching moments caused by varying airspeed or load distribution.

Horizontal stabilizer trim function fine-tunes the elevator position for stable cruising. Pilots adjust pitch attitude using the trim wheel, which moves the elevator trim tab to counteract control forces. This adjustment allows pilots to maintain a consistent pitch attitude without continuous input, reducing workload during flight. Elevator pitch control effectiveness depends on airspeed, elevator area, and deflection angles. Typical elevator deflection ranges for the Cessna 172 measure 20° upward and 15° downward, delivering robust mechanical and aerodynamic regulation.

Flight control surface aerodynamic regulation relies on the elevator's ability to alter airflow over the horizontal stabilizer. Upward deflection generates downward lift at the tail, raising the nose, while downward deflection creates upward lift, lowering the nose. The elevator's placement at the tail provides mechanical leverage, optimizing pitch control attitude adjustment. A typical elevator cable diameter measures about 0.25 inches (6.35 millimeters), running from the yoke through pulleys to the elevator control horn. The Cessna 172 achieves pitch trim exclusively through the elevator trim tab, as it lacks a horizontal stabilizer trim function.

What are the differences between the straight tail and swept tail on a Cessna 172?

Differences between the straight tail and swept tail on a Cessna 172 are explained in the table below.

Cessna 172 tail assembly design compatibility supports seamless integration of either tail type, preserving structural integrity and functionality. Design differences in tail configuration aerodynamic trade-offs emphasize the straight tail's efficiency in reducing interference drag. Structural and aesthetic considerations influence pilot preference, though performance differences do not strongly affect operational decisions.

The differences between the straight tail and swept tail on a Cessna 172 involve aerodynamic trade-offs, structural variations, and aesthetic preferences.

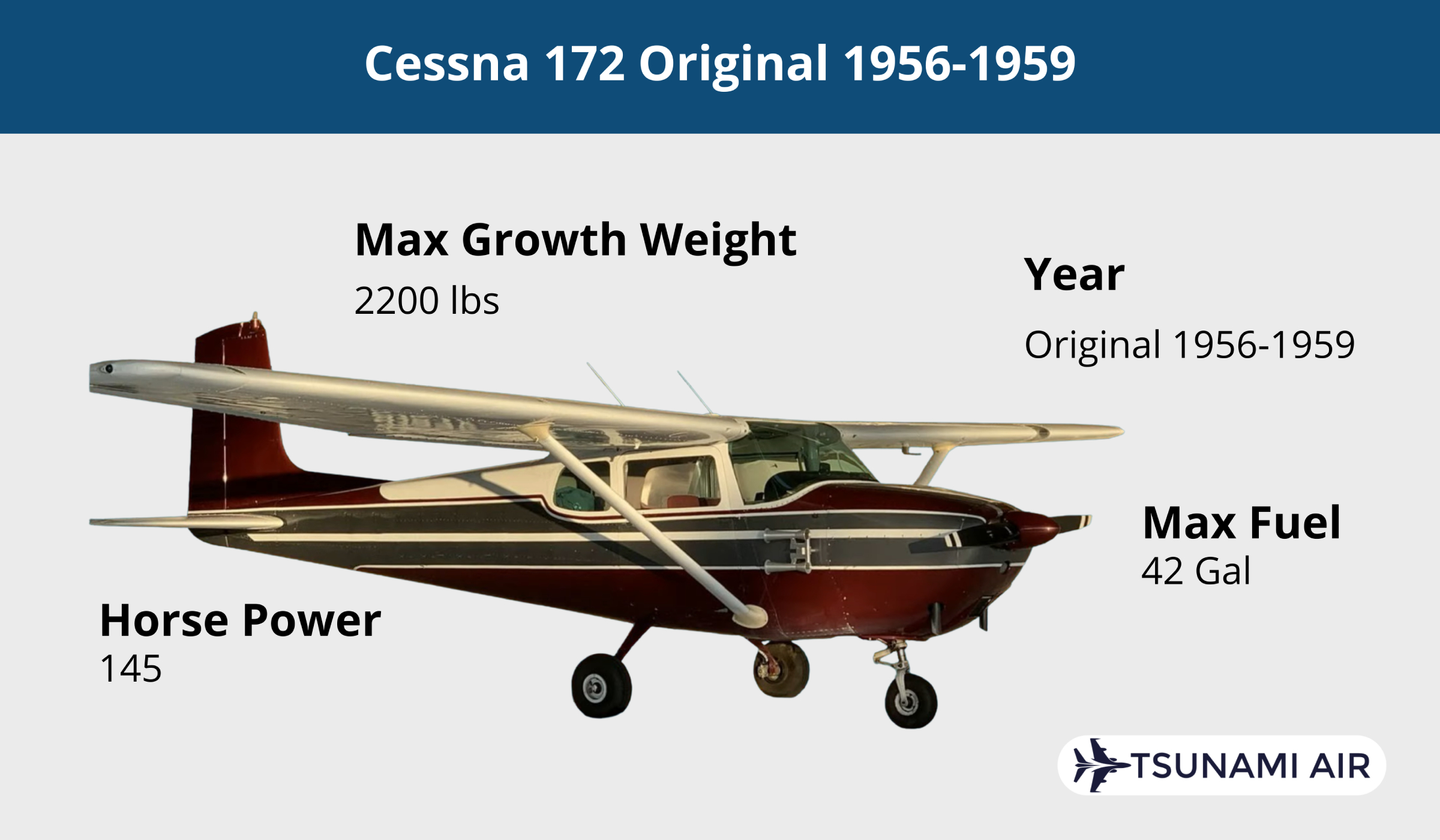

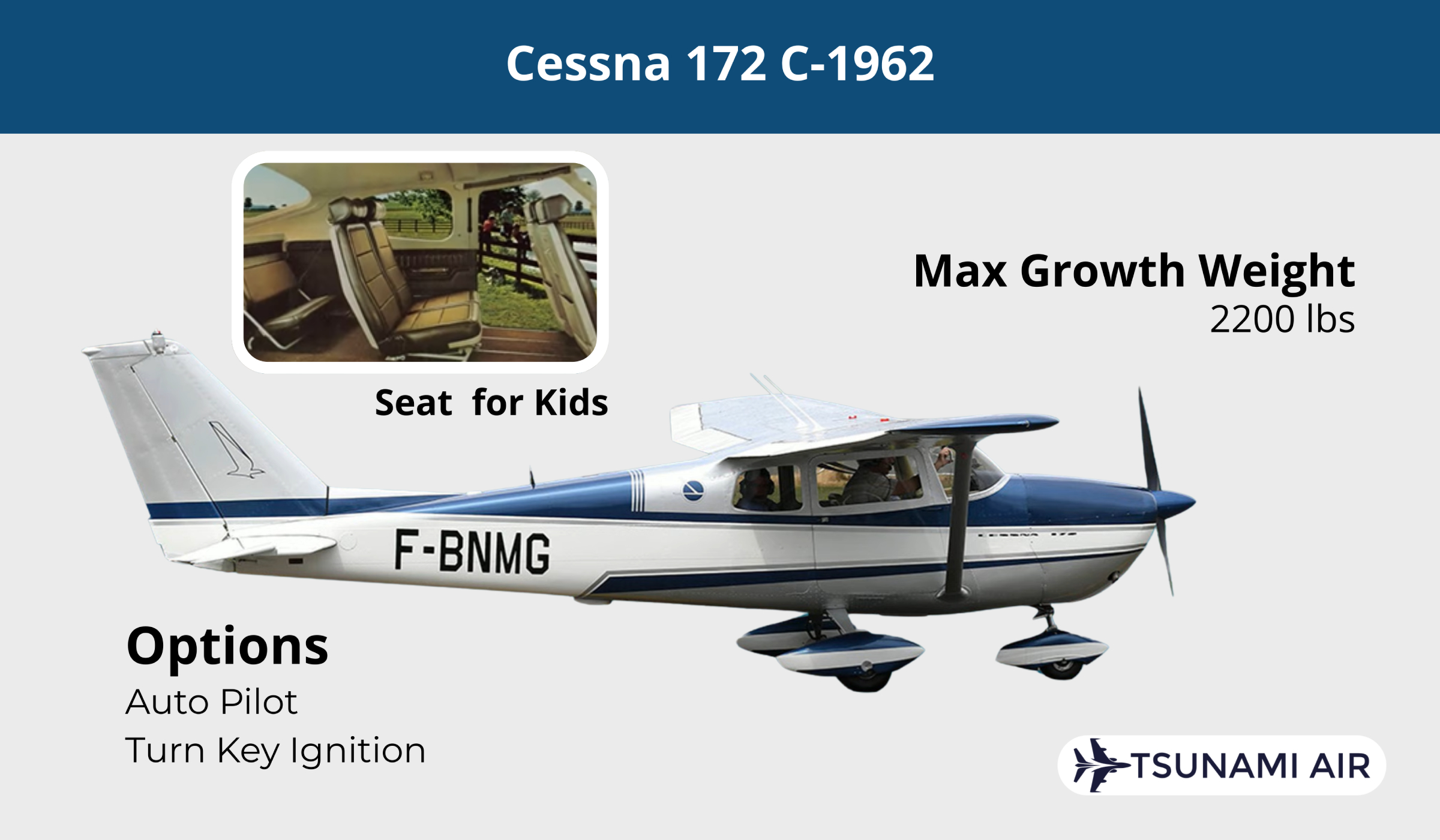

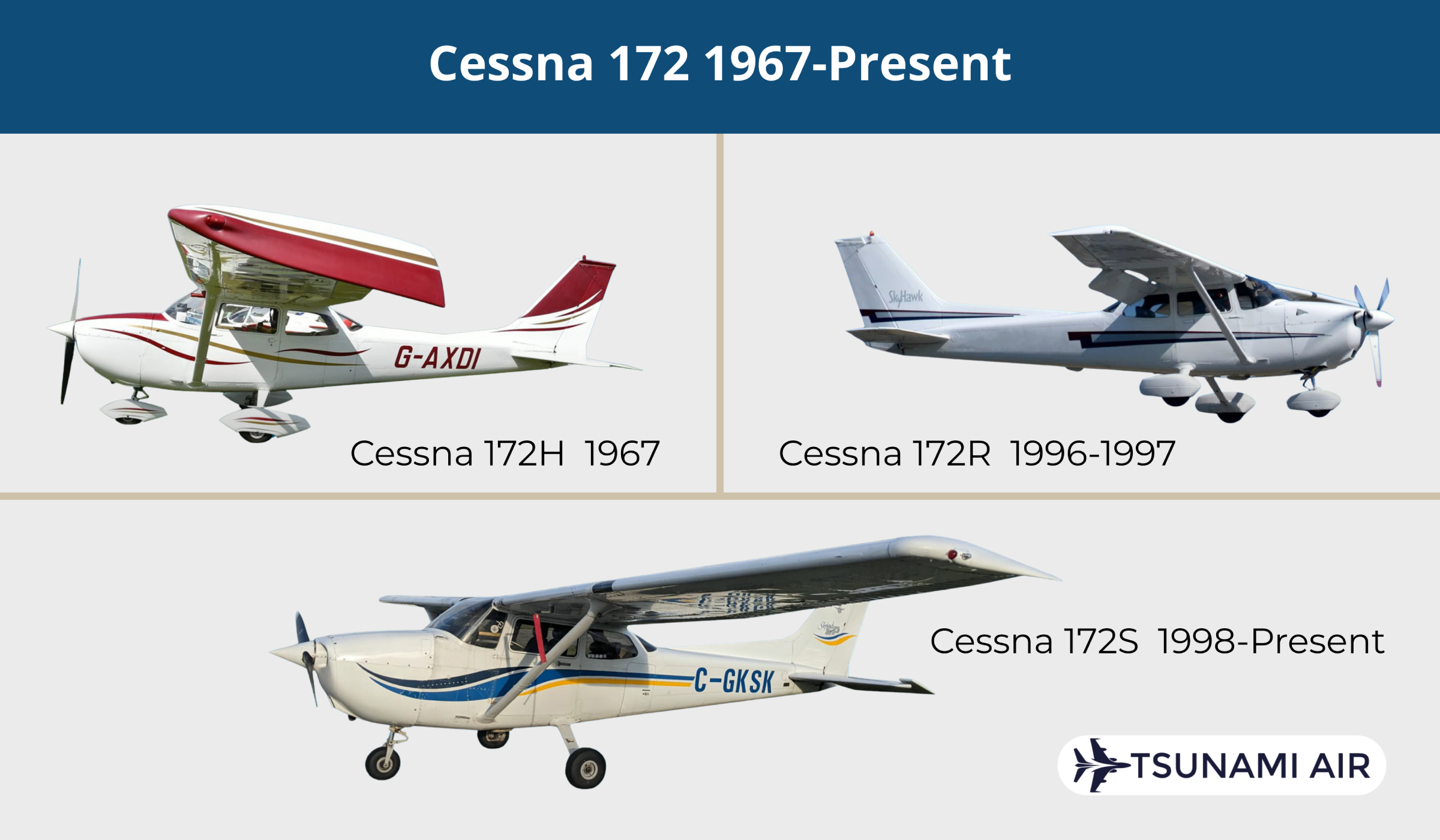

What is the history of the Cessna 172?

The history of the Cessna 172 is deeply tied to its origins as a variant of the Cessna 170, with continuous production since 1956 making it the most produced aircraft in history. The Cessna Aircraft Company designed the Cessna 172 as a four-seat, single-engine, high-wing aircraft. Clyde Cessna founded the company in 1927, establishing a legacy of innovation in Wichita, Kansas. Over 44,000 units of the Cessna 172 have been manufactured as of the early 2020s, making it the most produced aircraft in history. The first flight of the Cessna 172 prototype occurred in June 1955, leading to mass production in 1956. The Continental O-300 engine powered the initial models, delivering 145 horsepower.

The transition from the Cessna 170 to the Cessna 172 marked a pivotal moment in aviation design. The Cessna 172 incorporated tricycle landing gear, replacing the tailwheel configuration of the Cessna 170. This modification upgraded ground handling and reduced the risk of ground loops, making the aircraft more accessible for novice pilots. The Cessna Aircraft Company officially launched the Cessna 172 in 1956, introducing it as a variant of the Cessna 170C with a nose wheel. Prototype design focused on stability, ease of operation, and reliability. The first flight of the Cessna 172 prototype occurred in June 1955, leading to mass production shortly thereafter. The Continental O-300 engine powered the initial models, delivering 145 horsepower.

The Cessna 172 is the most produced single-engine fixed-wing aircraft, with over 44,000 units manufactured as of the early 2020s. Initial production rates were modest, but by the 1960s, the company produced thousands of units annually. The 172F in 1965 introduced electric flaps for better usability. The 172I in 1968 adopted the Lycoming O-320 engine, rated at 150 horsepower, which became standard for subsequent models. Model evolution included updates: the swept-back tail of the 172A in 1960, the streamlined cowling of the 172B in 1961, and the "Omni-Vision" rear deck of the 172D in 1963. Production paused from 1986 to 1996 due to liability issues but resumed with the Cessna 172R Skyhawk, featuring modern avionics.

Flight schools worldwide have adopted the Cessna 172 as the primary trainer aircraft due to its simplicity, reliability, and forgiving nature. The aircraft's historical impact is profound, serving as the backbone of pilot training programs. The U.S. military utilized the Cessna 172 under the designation T-41 Mescalero, further solidifying its legacy. Technological advancements, including autopilot systems and adjustable seats, introduced in the 172C in 1962, made it more adaptable for training purposes. Continuous model updates aligned with evolving safety standards and performance requirements.

The FAA certified the aircraft shortly after its first flight, validating its operational suitability for general aviation. Regulatory adaptations included transitioning to the Lycoming O-320 engine in 1968, which upgraded performance and reliability. The 172S Skyhawk SP, introduced in 1998, featured a 180-horsepower engine, augmenting its capabilities. Tubular landing gear struts adopted in the 172L in (43.68 meters) contributed to structural durability. The Cessna 172's design updates, like lowered rear decks and refined tail configurations, addressed visibility and aerodynamic efficiency. These advancements cemented the aircraft's reputation as a cornerstone of aviation safety and performance.

Why is the Cessna 172 so popular?

The Cessna 172 is popular due to its ease of operation, safety, reliability, and affordability. The tricycle landing gear enhances stability during ground handling and reduces the risk of ground looping. The high-wing configuration provides excellent visibility, importantfor safe navigation. The robust construction minimizes maintenance requirements, assuring consistent training schedules. The fuel-efficient engine design lowers operational costs, making it cost-effective for flight schools. The forgiving flight characteristics enable a safe learning for mastering fundamental skills.

The tricycle landing gear of the Cessna 172 Skyhawk enhances ground handling while reducing the risk of ground looping, a pivotal factor for flight schools. The high-wing configuration ensures excellent visibility during all phases of flight, a feature valued in aviation training programs. Minimal maintenance requirements and robust construction lower operational costs, making the aircraft an affordable option for budget-conscious programs. Flight schools benefit from consistent training schedules due to the aircraft's reliability and proven track record.

Low operational costs stem from the fuel-efficient engine design, which minimizes expenses during frequent training flights. The payload capacity accommodates up to two large individuals with full fuel or three individuals with reduced fuel. The climb rate of 700 feet (213.36 meters) per minute at sea level demonstrates effective performance in diverse conditions. These attributes contribute to the widespread adoption of the Cessna 172 as a primary training aircraft.

The Cessna 172 Skyhawk builds trust through safety features, reliability, and flight characteristics. The aircraft’s engineering excellence meets the highest safety standards, reflecting the legacy of the Cessna Aircraft Company. Historical importance and continuous improvements since its introduction in 1956 solidify its position in aviation history.

Are Cessna 172 safe?

Yes, Cessna 172 is safe due to its design reliability, operational safety standards, and extensive maintenance practices. The Cessna 172 exhibits a fatal accident rate of 0.56 per 100,000 flying hours, lower than the general aviation average of 1.2-1.4. Stable design and forgiving flight characteristics make the aircraft ideal for training and private flying. Extensive maintenance procedures, including routine inspections and compliance with FAA airworthiness directives, provide consistent airworthiness. Over 44,000 units produced reinforce its reputation as one of the most reliable aircraft in aviation history.

The forgiving flight characteristics and stability of the Cessna 172 make it ideal for student pilots. The straightforward control systems of the Cessna 172 provide predictable handling during takeoff, landing, and in-flight maneuvers. Flight schools widely adopt the Cessna 172 training aircraft due to its robust design and ease of operation. The fixed tricycle gear of the Cessna 172 contributes to its stability. Pilots undergoing rigorous certification standards benefit from the aircraft's reliable fixed tricycle gear and responsive controls.

The Cessna 172 airframe adheres to design principles and manufacturing standards. FAA certification regulatory compliance reinforces the safety reputation of the Cessna 172 aviation platform. Airworthiness directives safety updates assure continuous improvements in operational safety standards. The service history of the Cessna 172 reflects its exemplary performance metrics and adherence to evolving industry regulations. Over 44,000 units produced underscore the legacy of reliable performance and design reliability integral to its success.

Handling adverse weather conditions, including high winds and turbulence, showcases the Cessna 172 stability. The inherent stability of the Cessna 172 makes it well-suited for operations in unpredictable environments. Pilots must remain vigilant about crosswind limitations during takeoff and landing in the Cessna 172. Predictable recovery characteristics in challenging conditions reinforce its reputation as a dependable aircraft. The weight and balance limitations of the Cessna 172 guarantee safe operations under various weather scenarios.

Historical accident data highlights the low accident rate of the Cessna 172, with a fatal accident rate of 0.56 per 100,000 flight hours. Most accidents involving the Cessna 172 result in minimal injuries, reflecting its structural integrity and protective features. Routine inspections and preventive maintenance procedures maintain the airworthiness of the Cessna 172. Compliance with airworthiness directives ensures that the Cessna 172 receives necessary safety updates. Manufacturers issue service bulletins addressing newly identified risks in the Cessna 172.

Can you fly a Cessna 172 cross country?

Yes, you can fly a Cessna 172 cross country. The Cessna 172 serves as a highly capable aircraft for cross-country flights, with a maximum range of 640 nautical miles on full fuel. Pilots rely on its 56-gallon fuel capacity, including 53 usable gallons, for long journeys. Weather forecasts critically impact flight safety, requiring careful planning to avoid thunderstorms, icing, and reduced visibility. Equipped with modern GPS navigation systems and VOR/ILS capabilities, the aircraft supports both VFR and IFR operations, boosting its versatility for diverse routes. The Lycoming IO-360-L2A engine ensures reliable performance, making the Cessna 172 a trusted choice for pilots undertaking extended trips.

Pilots require a minimum level of experience and certification for safe Cessna 172 cross country flights. Newly licensed pilots undertake such trips to build Cessna 172 hours while adhering to pilot certification cross-country endorsement requirements. Training programs emphasize navigation equipment, gps navigation, weather analysis, and emergency procedures to prepare Cessna 172 student pilots. Airspace regulations communication requirements demand clear interaction with air traffic control during all phases of flight. Regulatory compliance ensures adherence to airspace regulations vfr/ifr rules, when operating in controlled airspace.

Weather forecasts critically influence Cessna 172 cross country flight weather considerations and route planning. METARs and TAFs provide data to assess destination and alternate airport conditions, guiding flight planning fuel planning decisions. Thunderstorms, icing, and reduced visibility pose risks to Cessna 172 flights, requiring pilots to adjust routes or delay departures. Air traffic control coordination becomes vital during adverse weather. Route planning minimizes exposure to environmental hazards while supporting sufficient fuel endurance range for the trip.

Effective flight planning ensures safety and efficiency during Cessna 172 cross country operations. Pilots calculate fuel requirements based on distance, wind, and expected burn rates to maintain adequate fuel endurance fuel capacity. Pre-flight checks verify the functionality of navigation equipment VOR/ILS systems and the Lycoming IO-360-L2A engine. Contingency plans include identifying alternate airports and accounting for emergency reserves. The maximum useful load of 878 pounds (398 kilograms) dictates Cessna 172 payload distribution, balancing passengers, baggage, and fuel. A cruising speed of 124 knots (230 kilometers per hour) at 8,000 feet (2,438 meters) supports precise flight planning route planning.

The Cessna 172’s GPS navigation systems and VOR/ILS equipment enable accurate Cessna 172 approaches and reliable navigation during both VFR and IFR flights. The aircraft accommodates up to four occupants, defined by Cessna 172 capacity specifications. Engine reliability ensures consistent performance over extended trips, contributing to the aircraft's popularity for cross country adventures. Precision (ILS) and non-precision (VOR, GPS) approaches highlight the versatility of Cessna 172 pilots in varying scenarios.

Where can I find a Cessna 172 for sale?

You can find a Cessna 172 for sale on online marketplaces like Controller.com, Trade-A-Plane.com, and Aero Trader, which list detailed aircraft dealers inventory and provide aircraft dealers contact information. Controller.com lists Cessna 172 prices ranging from $54,895 to $469,000. Trade-A-Plane.com includes both used and new Cessna 172 models in its listings. Hangar67.com lists 52 Cessna 172s currently available for sale. Aero Trader connects buyers with local dealers and private sellers offering Cessna 172 aircraft. AircraftDealer.com provides a large inventory of Cessna aircraft across multiple regions including Washington, UK, Texas, and South Africa.

Aircraft dealers inventory includes certified Cessna 172 models listed through authorized sales networks. Cessna authorized sales networks certification ensures compliance with quality standards, providing buyers access to official inventory and verified aircraft dealers contact information. Aircraft dealers’ location spans regions like Washington, UK, Texas, and South Africa, offering broad accessibility for potential buyers. Online marketplaces for aircraft listings like Controller.com and Trade-A-Plane.com streamline the process of identifying available Cessna 172 models. Controller.com lists Cessna 172 prices ranging from $54,895 to $469,000, while Trade-A-Plane.com allows filtering by aircraft dealers inventory, location, and specific features. Aviation classified websites classified ads on platforms like Aero Trader and Hangar67.com provide detailed seller contact info and filter options. Aero Trader connects buyers with local dealers and private sellers in areas like New Jersey, Phoenix, and Toronto. Hangar67.com lists 52 Cessna 172s, including 2017 and 2019 models priced at $419,000 and $449,000 respectively. Auctions for used aircraft auction schedules are posted in advance, allowing buyers to review bid histories and vehicle condition reports. Aircraft brokers broker network assists with negotiation services, valuation, inspections, financing, and closing processes for smooth transactions. Cessna 172 club communities offer resources for buyers seeking project aircraft opportunities or group ownership arrangements.

What is the price of Cessna 172?

The price of a Cessna 172 depends on whether it is new or used, with new models starting at $281,820 and used models averaging around $146,000. A fully equipped new Cessna 172 includes advanced features like autopilot and reaches a price of $470,000. The top-tier model with all optional features costs up to $600,000. Older used models with high flight hours sell for as low as $40,000. Newer used models with lower flight hours average around $146,000 but cost up to $300,000 depending on condition. Maintenance and operational expenses impact the overall ownership cost.

Older used Cessna 172 models with high flight hours sell for as low as $40,000 due to their age and increased maintenance requirements. The average price of a used Cessna 172 reflects mixed conditions and is $146,000. Newer used models with lower flight hours command higher prices, reaching up to $300,000 depending on their condition and maintenance history. Buyers evaluate flight hours and overall aircraft condition when evaluating used Cessna 172 options.

The base price of a new Cessna 172 starts at $281,820 for a model without additional features or upgrades. A 2023 base model with a warranty costs $359,000, offering standard features suitable for most pilots. These mid-range options provide reliability and modern technology while maintaining affordability compared to fully equipped versions. Buyers take into account warranties and included features when purchasing a new Cessna 172.

Fully equipped new Cessna 172 models with advanced features like autopilot cost around $470,000. The top-tier model includes all optional upgrades and customization, reaching a price of $600,000. These high-end configurations cater to pilots seeking increased performance and cutting-edge technology. Buyers prioritize advanced avionics and customization options when investing in premium Cessna 172 aircraft.

The Cessna 172’s age, flight hours, condition, and included features influence pricing across both new and used models. Older aircraft with high flight hours sell for $40,000, while average used models cost around $146,000. New Cessna 172 aircraft range from $281,820 for a base model to $600,000 for a fully upgraded version. Maintenance history and technological advancements further impact the final price of the aircraft.
