Piper Cub: Definition, Specs, Performance, Difference, Interior

Piper Cub is a light aircraft featuring a single engine and a high-wing design optimized for stable flight characteristics. Piper Cub incorporates a propeller-driven system with specific parts engineered for efficient takeoff performance. Piper Cub serves as an ideal choice for pilot training due to its reliable flight dynamics. Understand Piper Cub's wing configuration, engine type, and interior layout.

The Piper J-3 Cub achieves lift through a wingspan of 35 feet (10.67 meters) and operates with a Continental A-65-8 engine producing 65 horsepower (48.5 kilowatts). The aircraft achieves a maximum speed of 87 mph (140 km/h) and a range of 220 miles (354 km). Pilots adhere to speed limitations to maintain structural integrity. Large windows in the cockpit provide excellent visibility for pilots during flight operations.

A stall speed of 38 mph (61.152 kph) ensures stability during key phases of flight. The Piper Cub requires 370 feet (112.78 meters) for takeoff and 290 feet (88.39 meters) for landing. Military variants of the Piper Cub served roles in World War II. Vintage aviation enthusiasts celebrate the Piper Cub as an iconic aircraft. Over 20,000 Piper J-3 Cubs were produced between 1938 and 1947.

The Piper PA-18 Super Cub features a higher-output engine compared to the J-3 Cub. The Super Cub includes a reinforced airframe and upgraded engine for enhanced performance. Modifications enhance utility and recreational flying capabilities. Tandem seating supports communication between occupants. Core instruments are arranged on the dashboard for readability.

The Super Cub interior emphasizes simplicity and functionality. Optional avionics enhance navigation and communication systems. The central stick in the cockpit ensures precise control during flight. Standard seats include upgrades for comfort. Extended baggage compartments increase storage capacity. Durable materials like vinyl cover the interior for wear resistance.

What is a Piper Cub plane?

The Piper Cub is a small, lightweight, single-engine airplane renowned for its simple design, ease of use, and iconic status in aviation history. The Piper J-3 Cub first took flight in 1937, marking a new era in affordable aviation. Its simple design features a welded steel tube fuselage covered with fabric and a wingspan of 35 feet 3 inches (10.74 meters), providing excellent lift. The aircraft's Continental A-65-8 engine produces 65 horsepower (48.4 kilowatts), enabling a maximum speed of 87 mph (140 kilometers per hour) and a range of 220 miles (354 kilometers). Pilots favor the Piper Cub for its tandem two-seater configuration and ability to operate from short grass strips.

Between 1938 and 1947, Piper Aircraft manufactured over 20,000 Piper J-3 Cubs, solidifying its part as a cornerstone of general aviation. The lightweight high-wing strut-braced monoplane design features a welded steel tube fuselage covered in fabric. This construction ensures durability while maintaining a low weight. The Piper Cub’s tandem two-seater configuration accommodates a pilot and passenger, with solo pilots occupying the rear seat for balance. The aircraft performs exceptionally well in training, recreational flying, and utility operations from short or unimproved airstrips.

The Piper Cub’s engine, a Continental A-65-8 air-cooled flat-4 piston engine, produces 65 horsepower (48.5 kilowatts), enabling a maximum speed of 87 mph (140 km/h) and a cruising speed of 75 mph (120.7 km/h). With a wingspan of 35 feet 3 inches (10.74 meters) and a length of 22 feet 5 inches (6.83 meters), the Piper J-3 Cub achieves excellent lift and stability. Its useful load capacity reaches 455 pounds (206.3 kilograms), enabling practical flight operations. Pilots value the Piper Cub for its simplicity, ease of handling, and ability to operate from grass strips or rough terrain. The aircraft’s forgiving flight characteristics make it ideal for primary flight training under programs like the U.S. Civilian Pilot Training Program.

Vintage aviation enthusiasts celebrate the enduring legacy of the Piper Cub. During World War II, the Piper J-3 Cub adapted into military variants known as the L-4 Grasshopper, serving roles in liaison, reconnaissance, and ambulance duties. Over 5,500 L-4 Grasshoppers (1,453 gallons) were produced, highlighting the versatility of the Piper Cub design. Notable variants include the Piper PA-18 Super Cub, which features a more upgraded engine up to 150 horsepower and high-performance metrics. The Super Cub retains the original Piper Cub philosophy while augmenting payload and range capabilities.

What are the specs of the Piper Cub?

The specs of the Piper Cub are given in the table below.

These measurements define the aircraft's compact and efficient design, contributing to its maneuverability. Adhering to these limits ensures optimal performance and safety during flight operations. This air-cooled, four-cylinder engine supports a top speed of 87 mph (140 kph) and a cruising speed of 75 mph (121 kph). The stall speed of 38 mph (61 kph) highlights the aircraft's stability at low speeds. Such Piper Cub specs make it reliable for training and recreational flying. Takeoff distance is 370 ft (112.78 m), while landing requires only 290 ft (88.39 m). These Piper Cub fuel and operational capabilities are efficient for short-range flights and appealing for aviation enthusiasts.

What engine powers the Piper Cub?

The engine that powers the Piper Cub is the Continental A-65-8. The Continental A-65-8 engine is air-cooled, horizontally opposed, and features four cylinders. The engine produces 65 horsepower at 2,350 rpm, providing reliable performance for the Piper Cub. A fixed-pitch propeller is driven by the Continental A-65-8 engine, delivering consistent thrust. The engine's displacement is 171 cubic inches, optimizing fuel efficiency for lightweight aircraft. The carbureted fuel system requires a minimum of 73 octane fuel, simplifying operational needs.

How fast does a Piper Cub fly?

How fast a Piper Cub flies depends on its engine configuration and flight conditions, with a cruise speed of 75 mph (120.7 km/h) and a maximum speed of 87 mph (140 km/h) under optimal performance. The Piper Cub's modest speed reflects its purpose as a reliable training aircraft.

Under normal cruise conditions, the Piper J-3 Cub achieves a speed of 75 mph (65 kts), which aligns with its design as a stable training aircraft. Pilots adhere to specific limitations: the 74 knots - do not exceed speed in level flight and climbs, with safety during operations. In glides or dives, the aircraft must not exceed 100 knots, a essential parameter for maintaining structural integrity. The stall speed of 42 mph (36 kn) highlights the crucial role of proper speed management, during takeoff and landing.

Speed values for the Piper Cub are expressed in both mph and knots, catering to different preferences within aviation. The maximum speed of 87 mph (140 kph) converts to 73 knots (135 km/h), while the cruise speed of 75 mph (121 kph) equals 65 kts (120 km/h). Understanding these conversions is fundamental for pilots operating the Piper Cub. Accurate interpretation of speed units ensures compliance with operational guidelines and enhances situational awareness during flights.

The Piper Cub aircraft provides an ideal platform for learning fundamental piloting skills, with a cruise speed of 75 mph (65 kts) and a maximum speed of 87 mph (73 kts). During climb phases, pilots maintain speeds below 74 knots to avoid exceeding structural limits. In descent scenarios, adherence to the 100 knots - do not exceed speed in a glide or dive ensures safe maneuvering. These practical considerations reinforce the Piper Cub’s reputation as a reliable and versatile aircraft.

What is the range of a Piper Cub?

The range of a Piper Cub is 190–220 miles (305.78–354.06 kilometers) under ideal conditions with a 65 hp (48.47 kilowatts) engine. Real-world operational range decreases due to payload, weather, and reserve requirements. Modifications like increased fuel capacity or engine swaps extend the aircraft's range.

The Piper Cub range varies widely based on the specific model and configuration. The standard J-3 Cub achieves a range of 220 mi (354.1 km) under normal conditions, while optimal conditions with a light load extend this to 225 mi (362.1 km). The PA-18 Super Cub equipped with a 150 hp engine increases the range to around 460 mi (740 km). Extended fuel capacity in the Super Cub further enhances endurance, achieving ranges up to 570 mi (917 km). Low-speed handling characterizes the Piper Cub, making it suitable for short-field operations due to its low stall speed and high-lift wing design.

The maximum range under balanced field length conditions is 206 nmi, but optimizing cruise speed for efficiency extends this to 400 nmi. Operating at the service ceiling reduces the range to 191 nm due to decreased engine performance at higher altitudes. Real-world limitations like payload, weather, and reserve requirements affect operational range. Pilots adjust flight planning by accounting for these factors, performing safe and efficient missions.

What is the takeoff distance of a Piper Cub?

The takeoff distance of a Piper Cub is 370 ft (112.78 m) under standard conditions. The Piper J-3 Cub requires a balanced field length of 730 ft (222.5 meters) to clear a 50 ft (15.24 meters) obstacle during takeoff. Optimal conditions reduce the takeoff distance to 200 ft (61 m) unofficially for lightweight configurations. Operators recommend a runway length of 1,000 ft (304.8 meters) for safety margins in less-than-ideal conditions. The PA-18 Super Cub requires 500 ft (152.4 meters) to clear a 50 ft (15.24 m) obstacle during takeoff. Confusion arises when the 500 ft (152.4 m) figure is misapplied to the Piper J-3 Cub instead of the PA-18 Super Cub.

The Piper J-3 Cub achieves a standard takeoff distance of 370 ft (112.78 m) under normal conditions, while the balanced field length extends to 730 ft (222.5 m) to clear a 50 ft (15.24 m) obstacle during takeoff. These figures highlight the distinction between ground roll and obstacle clearance requirements, with the latter accounting for additional safety margins. Optimal conditions reduce the takeoff distance to 200 ft (61 m) unofficially, in lightweight configurations or when operated by a 165 lb (75 kg) pilot achieving a minimal 75 ft (23 m) ground roll. Such performance underscores the aircraft's versatility but remains unofficial and unsuitable for standard operations.

The PA-18 Super Cub requires 500 ft (152.4 m) to clear a 50 ft (15.24 m) obstacle during takeoff, a specification misattributed to the Piper J-3 Cub. This confusion arises due to overlapping terminology and shared design lineage between the two models. The PA-18 Super Cub excels in short-field operations, achieving a takeoff distance of 350 ft (106.68 m) under specific conditions, further emphasizing its capabilities compared to the J-3 Cub.

Safety margins are crucialin real-world operations, with operators recommending a runway length of 1,000 ft (304.8 meters) for certain variants to accommodate less-than-ideal conditions. This recommendation exceeds the documented takeoff distances for both the Piper J-3 Cub and PA-18 Super Cub, assuring adequate space for unforeseen variables during takeoff. The emphasis on safety reflects the value of planning for operational uncertainties while leveraging the inherent simplicity and maneuverability of the Piper Cub lineup.

What is the landing distance of a Piper Cub?

The landing distance of a Piper Cub is 290 feet (88.4 meters) for the ground roll under normal conditions. The landing distance over a 50-foot (15.24-meter) obstacle for the Piper J-3 Cub measures 470 feet (143.26 meters) after clearing the obstacle. Skilled pilots achieve a minimal landing distance of 90 feet (27.432 meters) under ideal conditions. Environmental factors like wind, elevation, and runway surface directly affect landing distances. Short-field landings in the Piper J-3 Cub require precise technique to optimize performance. The balanced field length for landing over a 15-meter (50-foot) obstacle extends up to 223 meters (730 feet).

The Piper J-3 Cub demonstrates versatility in landing distances due to variations in environmental conditions and pilot expertise. Wind speed and direction, elevation above sea level, and the type of runway surface directly influence landing performance. Skilled pilots utilize precise short-field techniques to achieve minimal landing distances 90 feet (27.432 meters) under ideal conditions. The balanced field length for landing over a 50-foot obstacle extends up to 223 meters (730 feet), for safety during operations. A total landing distance of 800 feet (243.84 meters) accounts for clearing a 50-foot (15.24 meters) obstacle, reflecting scenarios where additional clearance is necessary. Environmental factors and pilot technique remain significant for optimizing both standard and short-field landings in the Piper J-3 Cub.

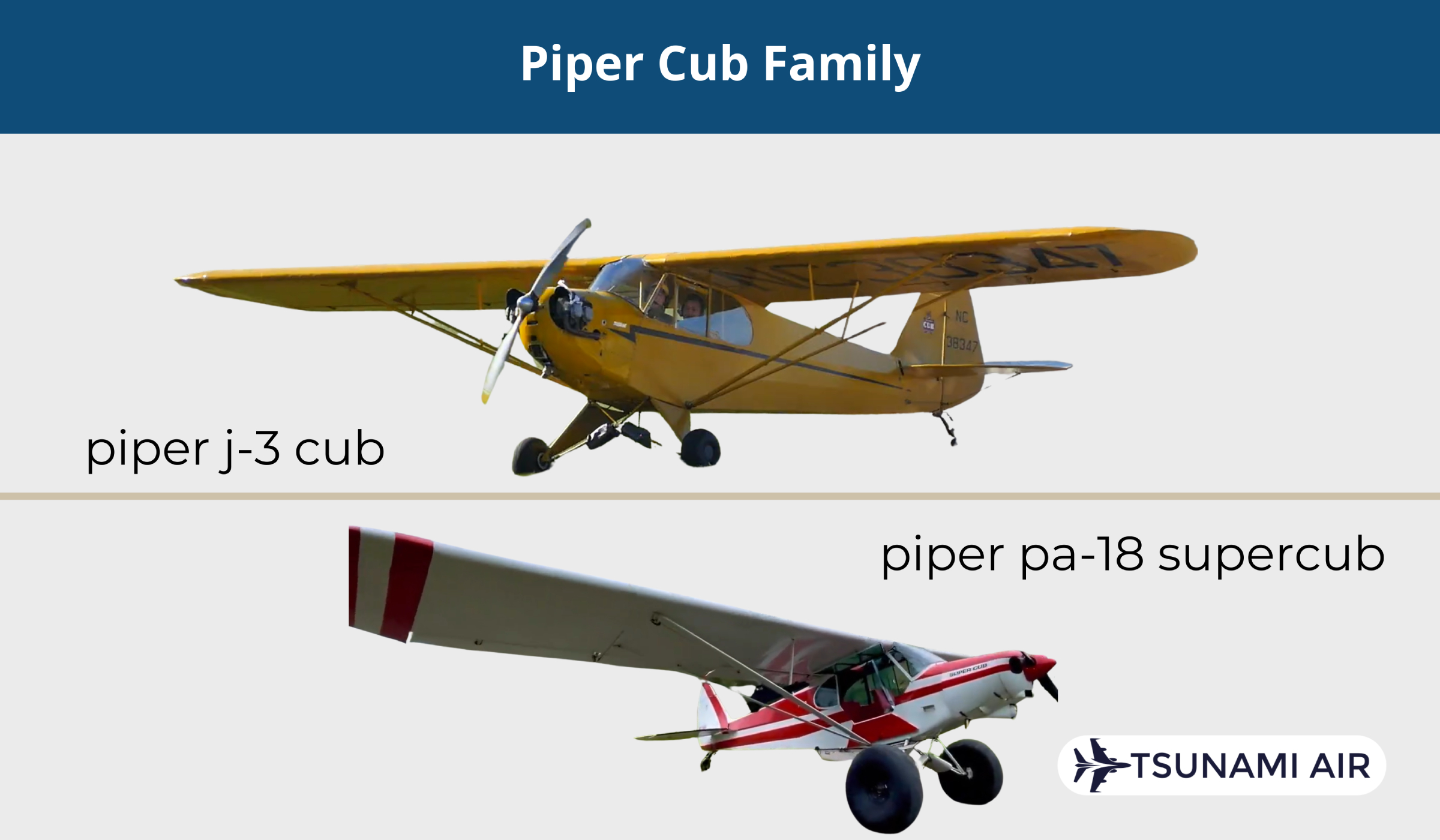

What is the difference between the Piper J-3 Cub and the Super Cub?

The difference between the Piper J-3 Cub and the Super Cub is explained in the table below.

The Piper J-3 Cub original design emphasized simplicity and functionality, serving as a lightweight training aircraft. These specifications reflect the Piper J-3 Cub basic performance characteristics, making it ideal for entry-level pilots and recreational flying. Extended baggage compartments and external luggage pods further enhance its versatility. Performance improvements in the PA-18 Super Cub focus on short-field capabilities. The Piper Cub series evolutionary advancement highlights the transition from the Piper J-3 Cub to the PA-18 Super Cub. Engineers addressed limitations of the Piper J-3 Cub by reinforcing the airframe and upgrading the engine. The PA-18 Super Cub represents a more robust and capable aircraft, building upon the Piper J-3 Cub original design principles.

The difference between the Piper J-3 Cub and the Super Cub is that the Super Cub features a more efficient engine, reinforced airframe, and greater performance capabilities.

What is the interior of a Super Cub plane?

The interior of a Super Cub plane features a classic open cockpit design with tandem seating, emphasizing simplicity, functionality, and adaptability for bush flying. Large windows and minimal obstructions provide excellent visibility, enabling off-runway landings and takeoffs. Controls are positioned for easy accessibility, emphasizing the aircraft's simplicity and functionality. The tandem seating arrangement allows for good communication between occupants and accommodates modifications like extended baggage compartments or external luggage pods. Standard aircraft seats offer basic comfort, with some owners upgrading upholstery materials for better ergonomics.

The PA-18 Super Cub cockpit integrates the altimeter, airspeed indicator, and tachometer on the dashboard for optimal readability and quick reference during flight operations. Pilots add optional avionics for navigation and communication, including GPS systems or advanced radio equipment. The instrument panel gauges and indicators are arranged for optimal readability, enabling the access to important flight data during operations. Dashboard design integration emphasizes simplicity and functionality, avoiding unnecessary complexity for quick information uptake.

The central stick allows either occupant to manage the aircraft effectively. Cockpit interior ergonomics prioritize accessibility, assisting bush flying operations with minimal obstructions. The mechanical flight controls precision ensures responsive handling, elevating maneuverability in challenging conditions. The Super Cub’s cockpit interior simplicity reflects its design philosophy, focusing on reliability and ease of maintenance.

The cabin layout arrangement features a tandem seating configuration that accommodates two occupants with ample legroom. Rear-seat visibility remains limited due to the design, but extended greenhouse windows ameliorate situational awareness in some models. Seating configuration support includes standard aircraft seats, with upgrades available in materials like leather or vinyl for comfort. Owners modify the cabin by adding extended baggage compartments or external luggage pods, increasing storage compartments capacity. Storage compartments accessibility emphasizes utility, catering to the needs of backcountry flying.

The Super Cub’s interior incorporates durable upholstery materials: vinyl or lightweight carbon fiber panels. Basic finishes prioritize wear resistance over aesthetic refinement, aligning with the aircraft’s rugged purpose. Interior lighting illumination provides sufficient clarity for night flying, with options for additional lighting to enhance dashboard readability. Comparisons to similar light aircraft highlight the Super Cub’s adaptability and focus on practicality. The cabin layout functionality supports pilot-focused operations without extraneous features.

Where can I find a Piper Cub for sale?

You will find a Piper Cub for sale on platforms like Controller.com, Trade-A-Plane.com, and Barnstormers.com, where listings provide detailed specifications and pricing information. Controller.com lists Piper Cubs ranging from $80,000 to $399,999 with detailed specifications and filtering options for model, location, and price. Trade-A-Plane.com features multiple J-3 Cub listings alongside advanced search filters for refined results. Barnstormers.com provides specific listings, including a 1946 J3 Cub priced at $57,500, with upgraded models showcasing features like C-85 stroker engines and carbon modifications. Aircraft brokers offer extensive market knowledge and connect buyers to sellers through platforms like Controller.com and Trade-A-Plane.com. General aviation dealerships display Piper Cubs in showrooms or assist with custom orders.

Aircraft brokers possess extensive knowledge of the market and provide access to exclusive listings not always visible on public platforms. Aircraft brokers’ contact information is listed alongside aircraft postings on Controller.com and Trade-A-Plane.com, enabling direct communication with buyers. General aviation dealerships contribute to the search by maintaining aviation dealerships showroom inventory where users can view available models or inquire about custom orders for specific Piper Cubs. Dealerships assist clients in locating rare models, including upgraded variants like CubCrafters editions, even when not immediately in stock.

Participation in aircraft auction platforms auction listings offers another viable option for acquiring a Piper Cub. Auction platforms like AuctionZip, eBay, and Craigslist feature models ranging from restored classics to sport editions. The aircraft auction platforms bidding process requires careful attention to terms, fees, and inspection requirements before committing to a purchase. Listings include detailed specifications highlighting features including floats, carbon modifications, or engine upgrades. Classified ads serve as an additional resource, with aviation classified ads advertisements providing direct seller contacts for streamlined communication. Platforms like Barnstormers and Craigslist list Piper Cubs with descriptions and photos that emphasize unique configurations, including super or sport variants.

Websites like Controller.com and Trade-A-Plane.com provide Piper Cub listings with pricing information alongside technical data, assuring transparency for potential buyers. Barnstormers.com highlights rare models like the 1946 J3 Cub priced at $57,500, showcasing upgraded features like C-85 stroker engines. Online aircraft marketplaces search filters allow users to refine results by location, price range, condition, and specific features, making the search process more efficient.

Aviation enthusiast forums foster public-driven recommendations and referrals for locating Piper Cubs. Members share insights into trusted sellers, brokers, and rare models through aviation enthusiast forums recommendations. These forums connect buyers to networks of owners and enthusiasts who provide guidance on purchasing decisions. Discussions focus on top models like the Supercub or CubCrafters designs, emphasizing configurations like floatplanes or carbon-reinforced editions. Aviation classified ads seller contacts and online aircraft marketplaces inventory listings further supplement these efforts, providing a thorough review of available options.
